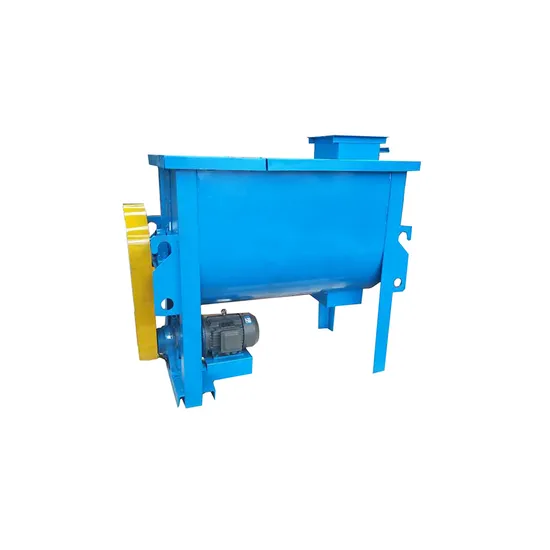

Commercial High Quality Poultry Fertilizer Feed Horizontal Mixer Machine

Product Description

Horizontal mixer, also known as flat bottom mixer, is a kind of mixing equipment widely used in pharmaceutical, chemical, food, cosmetic and other fields. It is not only suitable for mixing powder or solid particles, but also for mixing and mixing liquids. The equipment is driven by a motor to rotate the agitator to fully mix the required materials.
Principle of horizontal mixer machine
The working principle of horizontal mixer machine is to mix the materials in a horizontal cavity. The materials enter the cavity through the feed port and are then mixed by horizontal rotating blades. The blades are designed in a way to form a continuous flow of materials so that the materials are evenly mixed. The mixing process can be made more efficient by adding water or other liquids as needed, thus ensuring that the final product has a consistent moisture content.
Functional characteristics of large industrial mixing machine
1. The structure of horizontal mixer is simple, easy to maintain and easy to operate.
2. The agitator can be replaced as needed, suitable for different mixing and processing requirements.
3. The shell and mixing barrel of horizontal mixer are widely made of stainless steel, which is not only beautiful and durable, but also has high hygiene standards for food, medicine and other industries.
4. The mixing speed of horizontal mixer can be adjusted as needed to meet different mixing requirements.
Application of horizontal mixer
Horizontal mixer is widely used in pharmaceutical, tobacco, food, cosmetics, chemical, pigment and other industries, mainly used for mixing powder, granular, paste and liquid materials. For example: granular pharmaceutical raw materials, jam, batter, cosmetics, dyes, etc.
Benefits of horizontal mixer
1. Horizontal mixer is easy to operate, and the mixing barrel and stirring blade are made of stainless steel, which is easy to clean and maintain.
2. The mixing effect of horizontal mixer is more uniform and larger due to the horizontal rotation stirring.
3. Some horizontal mixers use variable speed control system, and different speeds can be configured according to the required mixing degree when making different materials.
Technical information:

Model	Capacity	Motor	Weight	Dimension
WSX-15(SS)	15 kg/8min	1.5 kw	70 kg	950*400*940mm
WSX-25(SS)	25 kg/8min	2.2 kw	85 kg	800*650*1200mm
WSX-80( Carton steel)	80 kg/8min	4 kw	130 kg	900*850*1200mm
WSX-350(Carton steel)	350 kg/8min	5.5 kw	490 kg	1200*1100*1400mm

Operation steps of horizontal mixer
1. Check whether all parts of the equipment are complete and whether there are any abnormal conditions.
2. Pour the materials to be mixed into the mixing barrel.
3. Start the motor and the agitator starts to rotate.
4. Set the required mixing time and speed.
5. Turn off the motor after mixing and pour out the mixed materials.
Common problems and solutions during the use of horizontal mixers
1. If the horizontal mixer makes abnormal noise during mixing, it may be due to bearing damage or motor drive failure. The solution is to repair and replace it in time.
2. If the horizontal mixer flashes or is unstable during mixing, it may be due to too tight or too loose bearings. The bearings can be adjusted appropriately.
3. If the mixing effect of the horizontal mixer is not ideal, it may be due to too much or too little material, and the mixing ratio needs to be changed.
Shipping process
1. Confirm the order details with the customer.
2. Prepare the product for transportation, including packaging and labeling.
3. Arrange the transportation method and delivery schedule.
4. Inform the customer of the transportation details and provide the freight tracking number.
5. Follow up with the customer to ensure that the product is received on time and intact. .
Measures to ensure the quality of machine products
Our company strictly controls the quality during the production process. From material selection, production process to inspection and acceptance, every link will be strictly controlled. All machines will be inspected and accepted before leaving the factory to ensure that the quality of the machine meets the standard requirements.
The difference between our company's products and others
1. The latest production technology and materials are used to ensure the quality and stability of the machine.
2. The machine has a beautiful appearance and is easy to operate and maintain.
3. The machine can be customized according to different customer needs to meet the needs of different industries.
4. Our company has established a long-term good cooperative relationship with customers, and can quickly respond to customer needs and provide the best solutions.
