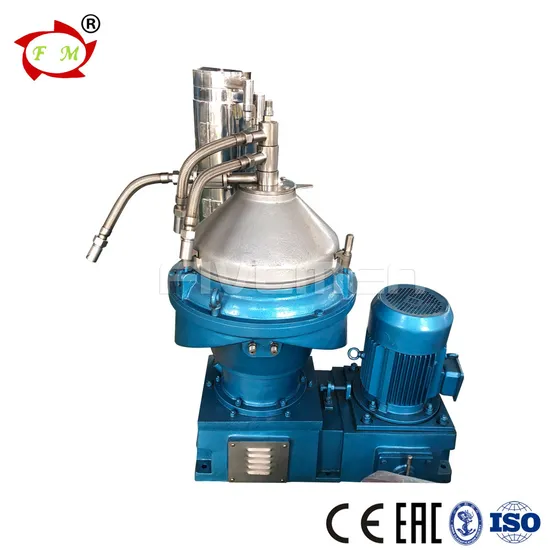

Fish and Animal Oil Clarifying Refinery Centrifuge Oil Separator Disc Stack Centrifuge

Product Description

Product Description

With the in-depth development of fish meal processing, the deep processing of fish oil produced during the
processing has been pushed to the forefront by the market. Our company has been well received by users since the
three phase horizontal snail was put into the fish meal processing production line in 2011.In this production
process,our company cooperated with some fish meal factories to further improve the quality of fish oil in fish oil
production and developed a mature set.Deep processing of crude fish oil.
Fish oil from fish meal factories and aquatic animal oils from oilmelting plants,although there are few water and
mechanical impurities in the oil,this is does not meet the requirements of some advanced oils and further
processing, and needs further refinement,including Detoxification,dehydration, deacidification. Decontamination
and dehydration can be treated together in the process of deacidification .Disc separator can complete two
operations: liquid-solid separation (low concentration slurry separation),said clarifying operation; liquid-liquid (or
liquid-liquid-solid) separation (emulsion separation), said separating operation. Disc separator with its compact
, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light
industry, food, biological engineering, and transportation

Moled and Parameters:

No.	Model	Capacity	Drum diameter	Drum speed	Motor Power	Discharge way	Separator factor	Weight(kg)	Size(mm*mm*mm)
		(l/h)	(mm)		(KW)
1	KYDR203CD-23	1500	230	6930	2.2	Manual	6170	245	850*625*985
2	KYDH204SD-23	2000	270	7200	4	Automatic	6950	550	865*645*1100
3	KYDH206SD-23	3000	315	6500	5.5	Automatic	7000	650	900*600*1150
4	KYDH207SD-23	4000	385	6500	7.5	Automatic	7500	750	1100*1050*1250
5	KYDH209SD-23	5000	430	6000	11	Automatic	8050	900	1200*950*1400

Application:
