Gasoline Front-Loading Pepper Harvester Multi-Specification Cutter

Product Description

Product Description
Mower, also known as wheat and rice harvester, pepper harvester, this machine is a new product developed by our factory, the product is simple, easy to use, small, light weight, small size, with Jf68 walking tractor can be used, can harvest rice, three wheat and other single upright crops. Harvest 2-3 acres per hour.
Product characteristics
The cutting machine is composed of two parts: a matching host machine and a cutting machine. It is mainly used for harvesting wheat, rice and other platycodon crops, suitable for platform topography, plant height of 0.5~1.5 meters, stem diameter (less than 45°) wind less than 4, non-rainy day operation. The power output shaft of the cutter is transmitted to the cutting table gearbox through the transmission shaft, and is transmitted to the eccentric crank sliding frame mechanism through the transmission claw clutch and a pair of bevel gears to drive the cutter, and is transmitted to the drive shaft of the conveyor chain through the sprocket chain, thereby driving the movement of the upper and lower conveyor chain. The straw belt is driven by the star wheel of the straw lifter. The motion of the star wheel of the grass lifter is driven by the tooth extraction of the conveyor chain.

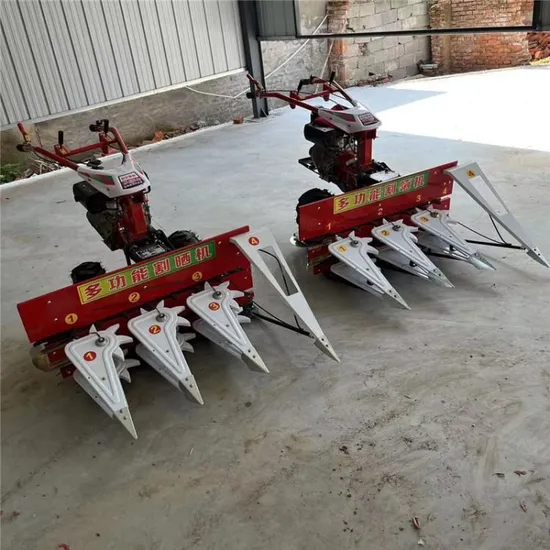

Detailed Photos

The cutting machine is composed of two parts: a matching host machine and a cutting machine. It is mainly used for harvesting wheat, rice and other platycodon crops, suitable for platform topography, plant height of 0.5~1.5 meters, stem diameter (less than 45°) wind less than 4, non-rainy day operation. The power output shaft of the cutter is transmitted to the cutting table gearbox through the transmission shaft, and is transmitted to the eccentric crank sliding frame mechanism through the transmission claw clutch and a pair of bevel gears to drive the cutter, and is transmitted to the drive shaft of the conveyor chain through the sprocket chain, thereby driving the movement of the upper and lower conveyor chain. The straw belt is driven by the star wheel of the straw lifter. The motion of the star wheel of the grass lifter is driven by the tooth extraction of the conveyor chain.
Mower is a more common agricultural machinery, hand-pushed mower size is small, easy to load and unload, move, very suitable for daily agricultural production. Such as pepper trees, small tomato trees such as fruit, not easy to pick the crops, with this sapling is cut down, and then the saplings shipped back home to pick the fruit. Not only can improve work efficiency, but also the fruit can be picked more cleanly, thus increasing the yield.
