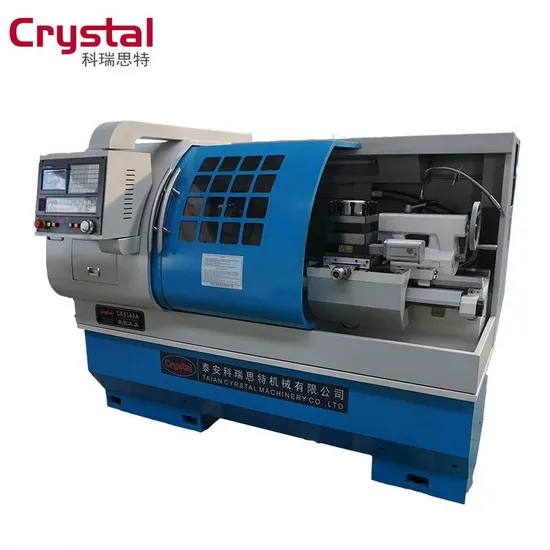

Chinese GSK Control CNC Turning Lathe Machine Price
| US$9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6140A
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Place of Origin
China
Machine Type
CNC Lathe
Processing Type
Metal
Motor Type
Servo Motor
Power Supply
Three Phase 380V/50Hz
Transport Package
Wooden Case
Specification
CE, SGS
Trademark
Crystal
Origin
China
HS Code
84581100
Production Capacity
25 Sets/Month
Product Description
The currency exchange rate fluctuates greatly, please consult customer service for the best price.Chinese GSK Control CNC Turning Lathe machine Price Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Main Features:
Frequency conversion stepless speed regulation
Higher working efficiency
Higher rigidity cast iron
Fully enclosed-safety
CK6140A Specification:
| Max. swing over bed | mm | Φ400 |
| Max. swing over cross slide | mm | Φ225 |
| Max. processing length | mm | 750/1000 |
| Spindle Taper | | MT6 |
| Thu-hole dia. of spindle | mm | Φ60 |
| Max. spindle speed | rpm | 150-2500 |
| Chuck size | mm | 250 |
| Spindle motor | kw | 5.5 |
| X/Z axis Position accuracy | mm | 0.01/0.015 |
| X/Z axis repeatability | mm | 0.012/0.013 |
| X/Z axis feed motor torque | N.m | X:5 Z:7.5 |
| X/Z axis fast feeding speed | Mm/min | X:6 Z:8 |
| Tailstock sleeve travel | # | 120 |
| Tailstock sleeve taper | # | MT4 |
| Tool post type | | 4 -piece electric tool post |
| Tool bar section | mm | 20*20/25*25 |
| Machine dimension (L×W×H) | mm | 2120/2370×1400×1700 |
| N.W | Kg | 1800/1950 |
Standard configuration:
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50Hz
Optional configuration:
Siemens system /Fanuc system
Hydraulic chuck/ pneumatic chuck
Hydraulic collet/ pneumatic collet
6-piece electric tool post/8- piece electric tool post/ Gang type tool
Auto bar feeder
