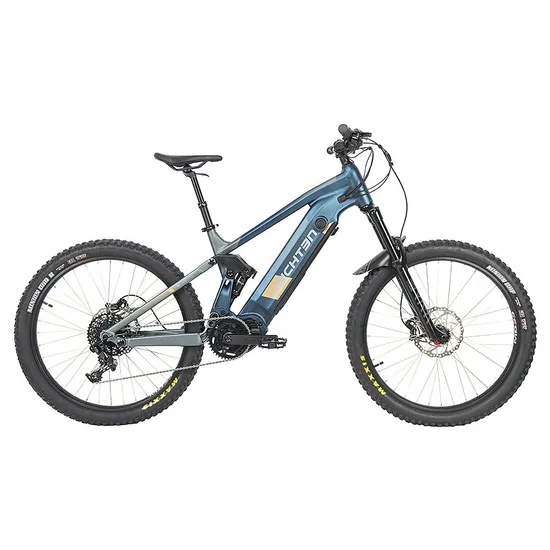

MID Driver Ebike Electric Bike Hot Sale Wholesale Custom 27.5inch 48V 500W Lithium Battery OEM Aluminum Alloy 11 Speed 20 Ah
Basic Info.
Model NO.
LT-TR07
Wattage
250W/500W/750W
Battery Voltage
48V
Battery Type
Lithium Battery
Wheel Size
27.5*2.8/29*2.5
Motor
Brushless
Frame Material
Aluminum Alloy
Certification
CE, EN15194, TUV
Folded
Unfolded
Max Speed
41-60km/h
Range per Power
70-100km
Color
Customized
Samples
Avialble
N.W
29kgs
Top Speed
45-50km
Range
80-110 by PAS
Light
LED Headlight and Railight
Frame
Full Suspension
Tire
27.5*2.8 or 29*2.5
Chain
E-Bike Chain 11 Speed
Handlebar
Mountain Bike Handlebar 76cm*31.8
Stem
Mountain Bike Stem 31.8
Fender
N/a
Rear Rack
N/a
Kickstand
N/a
Saddle
Sr
Transport Package
Carton
Specification
167*34*87cm
Trademark
Leichten or customized
Origin
China
HS Code
8711600010
Production Capacity
5000PC/Month
Packaging & Delivery
Package Size
167.00cm * 34.00cm * 86.00cm
Package Gross Weight
41.000kg
Product Description
2024 tope sales Electric Downhill E-MTB with Removable 960wh Battery Aluminum Frame 29 inch Tire Electric Mountain Bike
| Parts Name | Components details |
| Frame | Aluminum full suspension, frame suspension160mm travel |
| Motor | Bafang Mid-driver M510-250w, also can upgrade M600-500W, M560-750W |
| Fork | Rock shox DOMN 180mm Travel, Sram |
| Rear Shock | RS DLX SEL+ RL/185×55mm |
| Derailleur | RD NX 1X11SPD SRAM |
| Brake(F/R) | Hydraulic Disc-brake,4 piston, Tektro H535 |
| Tires | 27.5*2.8 or 29"X2.5 Minion DHF EXO, Maxxis |
| Dropper seat | KS-125mm Travel control from handle bar |
| Battery | Max capacity 48v/20ah/960wh,21700 li-ion battery, Samsung cells,battery removable |
| Charger | 48V/3A faster charger, fit local market standard flug |
| Charge time | 3-5 hours |
| Range | 80-110km by PAS on full charge |
| Light | with Headlight and raillight |
| Top speed | 45-50km/h |
| Net Weight | 29kgs with battery |
| color | Yello, Black, White(Customization is available) |
| Logo | Customization is available, Need MOQ 10 Pcs each model |
| container loading | 60 units by 20ft, 150 units by 40HQ |
| Delivery time | 2-3 months |
| Warranty | Frame: 3 years, motor:2 years, battery: 2 years, other parts: 6 months |
| FAQ: (The most common questions wholesalers ask) |
1. Are you munufature or Trading Company? |
| We are an electric bicycle factory dedicated to development, production and sales. We are committed to high-end products and markets |
2. what is your main products? |
| our Main products is E-MTB, E-Bike, E-Gravel, E-city bike, E-Road bike, E-folding bike, and any electric bike, welcome to discuss for OEM. |
3. Can I have your product catalog? |
| You can get 2024 new catalog from my mail. |
4. Did you have any EU warehouse and USA warehouse? |
| So far we don't have warehouses in Europe and the United States, but this is in our future plans. Once the warehouses are set up, we will notify you as soon as possible. |
| 5. what is your MOQ? |
| The MOQ for our existing models is 10 units per model. If you need a custom frame or other complex accessories, we will discuss it based on the specific situation. |
| 6. Can I order one pcs? |
| Normally we do not sell in retail. If you are a distributor in the electric bicycle industry and need to purchase a sample bike to test the quality of the product, we are very welcome. |
7. How long is your lead time? |
| Usually the samples order will be completed within 2-3 weeks, and the batch order will take 1-3 months |
8. How about the shipment? |
| For sample orders, we usually ship by DDP, with an estimated cost of $400-700, depending on the customer's detailed address and the packaging size of the bicycles. The shipping time is about 1-2 months. For bulk order shipments, we normally load the goods directly at the factory. |
9. How about your QC? |
| We have a professional QC team, which is currently divided into incoming components inspection, in-production inspection, and pre-shipment inspection. Each E-bike is inspected before shipment and has registered and data records. |
10. What is your after-sales service policy? |
| Normally, our warranty period is as follows: 3 years for the frame, 2 years for the motor, 2 years for the battery, 1 year for the controller, and 1 year for the display. Other wearing parts are not covered by the warranty. If there is damage caused by non-human factors within the warranty period, we will provide free repair, replacement, and technical guidance. |
11. Does your factory release new products every year? |
| We have our own independent R&D department, which can independently design and develop. We will develop 3-5 new models every year according to market demand. |
12. Can we customize the frame, configuration, color, logo? |
| yes color, logo customized is avialble, and frame, Components customized is a avialble, and welcome to discuss each other. |
13. Will direct selling be in your future plans? |
| Our target customers are some relatively powerful wholesalers in each country and region. We provide a complete set of service systems before, during and after the delivery, so that our wholesalers can make money. We will do our duty within the scope of the factory to achieve a win-win situation. We have no plans to carry out direct sales business. |
