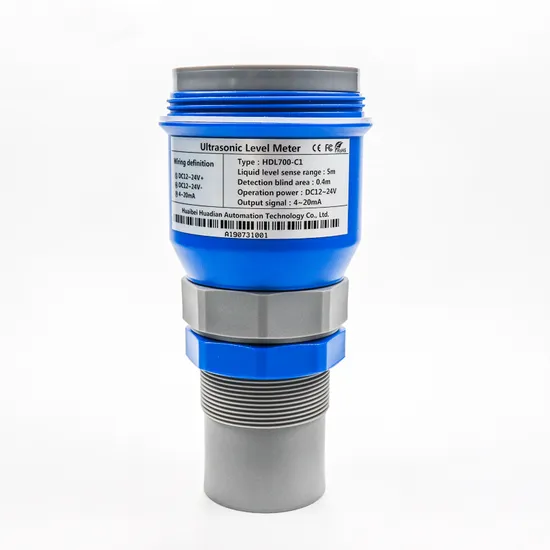

Premium Liquid Ultrasonic Level Sensor Gauge From Leading Manufacturer

Product Description

Our Company
Huadian Automation has been committed to the research and development of industrial process automation sensors and instruments since its establishment. The main products include flow meters, water quality analysis instruments,recorders, pressure transmitters, signal isolators and other field instruments.Huadian Automation is already working extensively in the oil and gas, water and wastewater, chemical and petrochemical industries in more than 120 countries and will take further efforts to get closer to customers and respond to their needs quickly and efficiently.
By 2022, Huadian Automation will have a large number of R&D personnel and engineers, and the total number of group employees will exceed 500. With the diversified market needs
In order to serve global customers, Huadian Automation has established and/or is preparing to establish offices in Singapore, Vietnam, Russia, Germany, Philippines, Malaysia, India and other places.
Huadian Automation continuously strives to establish close partnerships with companies around the world, integrating itself into the local innovation system while providing global technology innovation make a contribution.
With a customer-centric approach,Huadian Automation will continue to focus on process automation sensors and instruments and play an indispensable role in supporting the world's industries to become more intelligent and efficient. indispensable role.
Products Information
Features
Instruments are safe, clean, precise, long life, stable and reliable, Easy installation and maintenance And other characteristics, i.e. Suitable for acid, alkali, salt, antiseptic, high temperature and other fields. It can be connected to display meters, PLC and various DCS systems through 4 ~ 20mA to provide real-time liquid level data for industrial automation operation. The instrument circuit selects high-quality power components from the power supply part, selects imported highly stable and reliable devices, and can completely replace the same type of foreign imported instruments; the acoustic intelligent technology software can perform intelligent echo analysis without any debugging and other special steps. This technology has the function of dynamic thinking and dynamic analysis, so that the accuracy of the instrument is greatly improved, the liquid level accuracy reaches ± 0.25%, and it can resist various interference waves. Non-contact instruments, which do not come into direct contact with liquids, have a low failure rate. Instrumentation provides a variety of installation methods, and users can completely calibrate the instrument through this manual. All the input and output lines of the instrument have the protection function of lightning protection and short-circuit protection
Working Principle:

Technical indicators	Parameter	Technical indicators	Parameter
Measuring range	0~ 15m (customized based on	Blind area	0.35m ~ 0.6m
Range accurac	± 0.5% (standard conditions)	Distance resolution	1 mm
Compression force	Atmospheric pressure	Meter Display	Own LCD display
Analog Output	4 ~ 20 mA	Supply voltage	DC24V
Ambient temperatu	- 20 ºC ~ + 60 ºC	Protection class	IP65

Installation Guide
In the open environment, the bracket installation method is generally used, and the instrument is provided with a spiral ring to fix it. Or directly open a circular hole with a diameter of 60 mm at the installation position on the top of the tank or the lid, put the meter in, and then tighten the screw ring from the bottom to the top. The installation must ensure that the probe surface of the instrument is level with the measured liquid surface. As shown in the right figure, the probe of the instrument hits the liquid level and reflects back to the probe. After the probe receives it, it calculates the time from the wave to the wave to obtain the measurement space H. The installation height TH of the instrument minus the measurement space H will be Get the current level L. Meter range refers to the distance that the meter can measure. The installation height TH should be less than the range. The instrument blind zone refers to the area where the meter cannot measure near the probe. The distance between the highest liquid level and the probe should be greater than the blind zone. For example, the blind zone is 0.5m, then the distance between the highest liquid level and the probe must be greater than 0.5m. Such as: measuring range: 6 meters, blind zone: 0.45 meters, the actual measured maximum liquid level is: 0 ~ 5.55 meters.The wave propagation of the probe is a diffusion process, that is, there is a directional angle. Pay attention when installing, otherwise it may hit the protrusions of the pool wall or the edge of the channel
Our Products Using areas
Our Products Spread All Over the World
Our Honors
Our Certificates FAQQ: Are you trading company or manufacturer ?
A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient pressure/ level/ temperature measuring instruments.
Q: What's your quality control system?
A: All of our products are completed with temperature compensation and 48 hours aging test before shipment. And all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is the warranty of your products?
A: 2 years for level transmitter and pressure transmitter series others are 5 years from shipment date, for non-man-made damages.
Q: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS , EMS. Large orders are recommended to ship by sea.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How long will you give me the reply?
A: We can support you 24Hours online service via email, skype, what'sapp, facebook etc within 1 hour.
