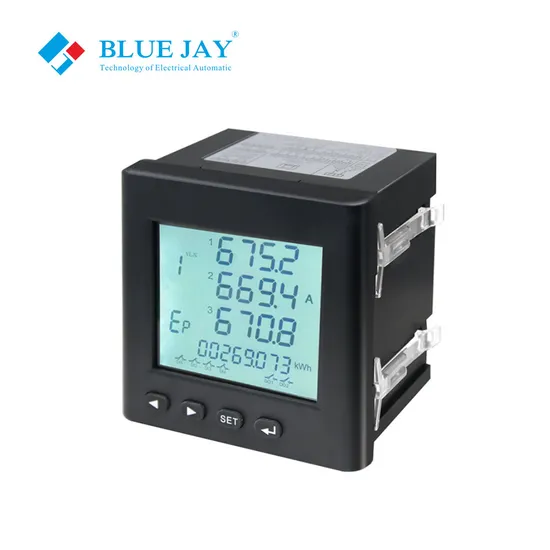

High Accuracy Multifunction Power Meterthree 3 Phase Electric Meter RS485 Modbus RTU Ethernet Energy Meter

Product Description

BJ-194Y three-phase multifunction power meter is a Mid-range electrical panel power meter. It is the ideal choice for monitoring and measuring 3P4W or 3P3W power systems.

This three-phase power meter can measure all of the power parameters in the power grid:

Current, Voltage, Frequency, Active power,

Reactive power, Apparent power, Energy (Active/Reactive), Power factor,

Current harmonics 2~15 times, Voltage harmonics 2~15 times, Voltage and current THD%, Multi-tariff record(TOU)

With optional expansion modules, it can also transmit the parameter into 2*Relay output (2DO) and 4*Switch input (4DI), 1*Analog output (1AO). For transformers, generators, capacitor banks, and motors of the distributed detection, automatic control system, and online monitoring display.

It can replace the traditional analog or many digital measurement instruments (such as an ammeter, voltmeter, power meter, power factor meter, frequency meter, etc.) with the advantages of improving system reliability, making the on-site wiring convenient, and reducing system cost.

With a serial port, the BJ-194Y multifunction panel meter can connect with a PC; and use Modbus to set programming and read the data. Based on these power meters, you can simply set up a monitoring system with the IPC and central software. Optional RJ45 Ethernet port for MODBUS-TCP protocol.


Features of BJ-194Y multifunction power meter
- Low-size (96 x 96 mm), panel-mounting meter.
- True R.M.S. measuring system.
- Instantaneous, maximum, and minimum values of each measured parameter.
- Energy measurement (indication through lighting led).
- RS-485 or Ethernet(optional) type communication to a PC.

Specifications of BJ-194Y multifunction power meter
