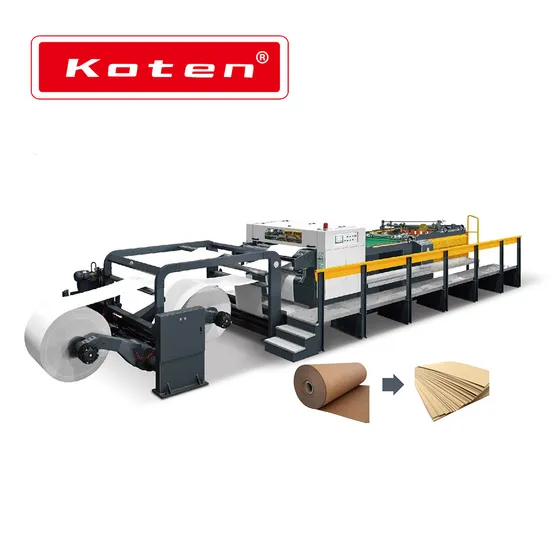

Automatic Paper Roll to Sheet Paper Sheeter Cross Cutter Machine
| US$40,000.00-70,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GDQ1400/1700
Type
Industrial Cutter
Blade Material
Steel
Computerized
Computerized
Servo Driven
Yes
Unwinding Roll
One or Two or Four
Precision
0.5mm
Automatic Collating Device
Yes
Transport Package
by Strong Wooden Cases.
Specification
Export Standard
Trademark
koten
Origin
China
Production Capacity
100set/Month
Packaging & Delivery
Package Size
900.00cm * 390.00cm * 235.00cm
Package Gross Weight
12000.000kg
Product Description
Process.
Finished Sample.
Main features:
This machine is suitable for cutting the large coil packaging material, such as the paper, paper plastic complex material and color printing complex material, etc. This machine is widely used for application in the industries of paper processing and printing packaging.
Application range:
The machine is suitable for cutting in longitudinal direction and cross direction the colied materials like paper, trademarks, cigarette labels, wall calendars, spirits boxes, playing cards, paper-plastic compound materials, etc.
Function: Transverse cutting with flat blade, automatic feeding, automatic stowing and photoelectric tracking.
Main Specifications.
| Model | GDQ-1400 | GDQ-1700 | GDQ-1900 |
| Suitable Paper Thickness | 60-500gsm | 60-500gsm | 60-500gsm |
| Max.Diameter Of Mother Roll | 1800mm Max | 1800mm Max | 1800mm Max |
| Max.Height Of Stacker | 1400mm | 1700mm | 1900mm |
| Cutting Length | 400-1650mm | 400-1650mm | 400-1650mm |
| Cutting Accuracy | ±0.3mm | ±0.3mm | ±0.3mm |
| Max.Cutting Speed | 300cuts/min | 300cuts/min | 300cuts/min |
| Max.Running Speed | 300m/min | 300m/min | 300m/min |
| Atmospheric Pressure | 0.8MPA | 0.8MPA | 0.8MPA |
| Power Supply | AC380V/220Vx50HZ | AC380V/220Vx50HZ | AC380V/220Vx50HZ |
| Total Weight | 12000kg | 13000kg | 15000kg |
| Dimensions | 9x3.9x2.35m | 9x4.2x2.35m | 9x4.5x2.35m |
| Total Power | 23KW | 25KW | 28KW |
