400 Ton PP Plastic Food Container Bowl Making Injection Molding/Moulding Machine

Product Description

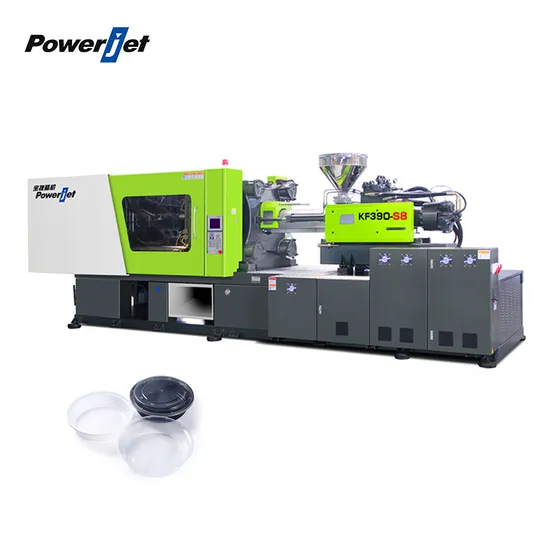

Powerjet KF380 high speed thin-wall disposable plastic food container injection molding machine
Powerjet provides specialized injection molding machine dedicated to plastic cutlery products, such as: plastic spoons,forks and knives. We have improved the injection system to makes thin-wall products easier to solidify, and can save 30-50% of energy compared to common models.
KF series is our specialized injection molding machine for thin-wall products.
FEATURES:
1:Energy-Saving 30%~50%
Servo motor with energy-saving controlled hydraulic systems can save electricity up to 30%~50%.
2:Low Temperature Injection
Low Temperature Injection Makes More Energy Saving And Keeping Products With High Tenacity And Toughness By Our Innovative Plasticizing System.
3:Low Pressure Injection
Low Pressure Injection To Gain Better Mechanical Protection And Longer Mould Service Life. Also Makes Molding Products With Low Stress And Deformation.
4:Fast Response Speed
Optimized Control System Response Speed Let Our Shooting Rate Reaching The Best Short Time Within 0.3 Seconds.

Product Parameters

	DESCRIPTION	UNIT	KF398-S8
CLAMPING UNIT	Clamping force	KN	3980
	Opening stroke	mm	580
	Max.datlight	mm	1230
	Platen size	mm	1000*1000
	Space between bars	mm	670*670
	Max.mold height	mm	650
	Min.mold height	mm	240
	Ejector stroke	mm	100
	Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	52
	Screw L/D Ratio	L/D	24
	Injection Pressure	MPa	188
	Shot volume	cm3	425
	Screw stroke	mm	200
	Screw speed	rpm	300
POWER UNIT	Pump motor power	KW	51+51
	Heater power	KW	30
