Radial Arm Drilling Machine Made in China (Z3080*25)
| US$7,600.00-7,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040 Z3050 Z3063 Z3080
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Drill Capacity
32mm
spindle travel
130mm
spindle taper
MT3
Power
1.1KW
speed steps
8
Transport Package
Plywood Case
Specification
500kgs
Trademark
HOTON
Origin
China
HS Code
8459590000
Production Capacity
5 PCS/Month
Product Description

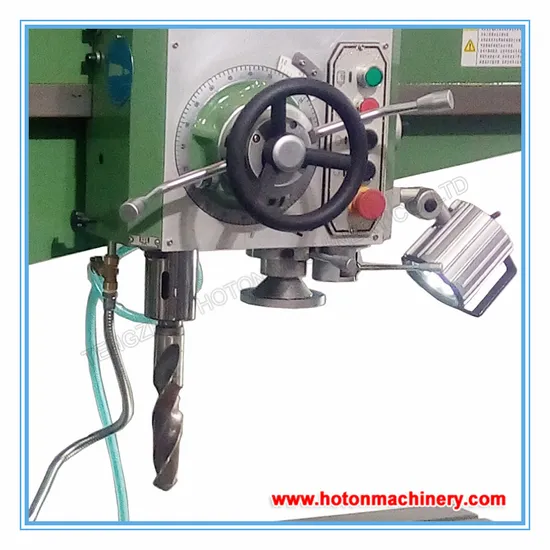

RADIAL DRILLING MACHINE FEATURES:
Inner-outer column.
Mechanical clamping for the column and mechanical Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center.
SPECIFICATIONS:
| Model | Z3032×8/1 Z3040×8/1 | Z3040×10/1 | ||
| Max.Drilling capacity (mm) | 32/40 | 32/40 | ||
| Distance spindle axis to column Generating line (mm) | 320-820 | 300-1300 | ||
| Diameter of column (mm) | 200 | 300 | ||
| Spindle taper | MT4 | MT4 | ||
| Spindle travel (mm) | 240 | 280 | ||
| Spindle speeds range (r/min) | 75-1220 | 32-2500 | ||
| Spindle speeds series | 6 | 16 | ||
| Range of Spindle feeds (r/min) | 0.1-0.25 | 0.10-1.25 | ||
| Spindle feeds | 3 | 8 | ||
| Max.Distance spindle nose to Working surface of base (mm) | 320-900 | 300-1320 | ||
| Dimension of worktable (mm) | 400×400×350 | 600×450×450 | ||
| Dimension of base (mm) | 1370×700×160 | 2050x900x200 | ||
| Overall Size (mm) | 1407×720×1885 | 2100x900x2300 | ||
| Power of Main motor (kW) | 1.5 | 3 | ||
| G.W/N.W (kg) | 1425/1200 | 2500/2100 | ||
| Packing dimension (cm) | 155×77×210 | 235x106x245 | ||
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES | |||
| Box shape worktable Taper Sleeve Tool releasing wrench Drift Eyelet bolts | Quick change chuck Tapping Chuck Grease Gun | |||
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
