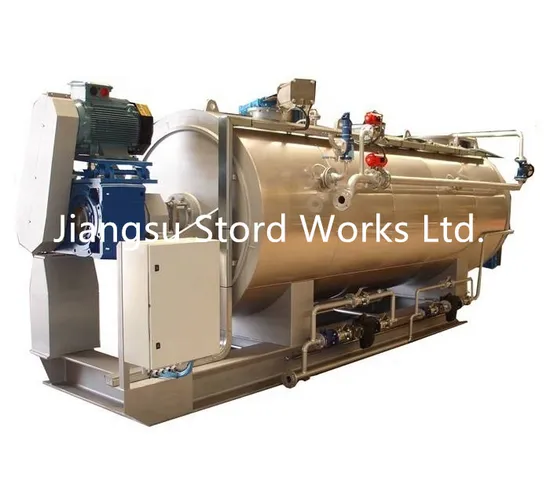

Industrial Steam Heating Animal Bone and Meat Continuous Batch Cooker

Product Description

Our company can design and manufacture the all kinds of meat/ bone, animal waste/feather/ process line technology independently. According to different process requirement, we design the new type of batch cooker. The cooker, the main machine of the rendering plant, combines inderect heating by shell of clamp cover and heating by internalspiral spindle. Spindle motor is of variable-frequency and variable-speed. Rotation speed of the cooker is adjusted as per variousraw material. Raw material can be fully cooked, serilized and extracted in the higher temperature and higher pressure condition, which then be completely decomposed into fat and flesh powder after drying, degreasing, crushing and other procedures. No loss of protein unlike steam heating which may bring in condensate. The oil is can be used as the industrial oil, feed oil and bio-diesel. The flesh powder can produce high protein feed and organic fertilizer, both of which have very high market potential.Its products are widely applied to agriculture, forestry, fisheries, animal husbandry, machinery and chemical industry etc. Machine base is of steel structure, removable and of convenient installation.

Model	Loading capacity (L)	Motor power (kw)	Equipment weight (t)	Dimension(LxWxH)(mm)
PBC-2000	1200	11	7	3800X1600X1500
PBC-3500	2200	22	12	5800X1600X1600
PBC-6000	3500	37	16	5800x1800x1600
PBC-8500	5500	55	25	8500x2000x1800
PBC-10000	6500	75	30	9000x2000x1800
PBC-12500	8000	90	35	10500x2000x1900
PBC-16000	9800	110	40	10500x2200x2000
PBC-18000	11000	132	45	10500x2300x2100

Company Information
Located in Fangqiao National Machinery Industrial Park, at the Taihu Lake, Yixing City, Jiangsu, China, JIANGSU STORD WORKS LTD. is home to more than 180 employees , covers an area of 25000 M2 and has more than 70 various manufacturing and testing devices, with the maximum lifting capacity of 100T and the maximum plate rolling capacity of 120mm. StordWorks has the specialized drying machine production workshop and advanced machining centers. We also have various international pressure vessels certification and abundant experiences in equipment manufacturing, such as National standard pressure vessel certification, American ASME certification, Norske Veritas DNV certification and EU PED certification. Jiangsu StordWorks adheres to the business philosophy of "Focusing on Professionalism & Quality First", and the service concept of "Customer-orientation and Exceeding Customer Satisfaction". By means of our excellent quality and perfect service, JiagnsuStord Works Ltd. sincerely looks forward to cooperating with you!
Packing & Shipping
1) Carefully check the quantity and quality of equipment before packing. 2) Good packed by plastic wrap. 3) Fittings and spare parts are packed in wooden pallet . 4) Suitable for export transport and sea freight 5) Add labels and shipping mark.
