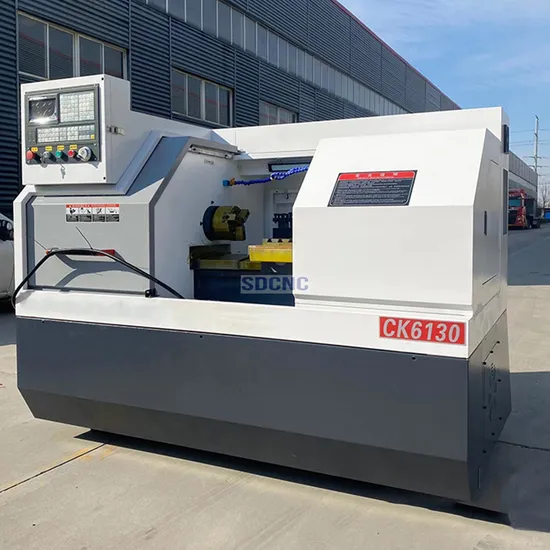

Ck6130 High Precision Automatic Light Duty Metal Processing CNC Lathe Machine
| US$5,640.00-6,630.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6130
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Certification
GS, CE, ISO 9001
Condition
New
Main Motor Power
4kw
Spindle Speed Range
100-2000rpm
Machining Size Range
300mm
Max Swing Dia Over Bed
300mm
Transport Package
Wood Packaging
Specification
2200*1160*1620
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2200.00cm * 1160.00cm * 1620.00cm
Package Gross Weight
1700.000kg
Product Description
Feature: CK6130 Cheap China automatic turning cnc metal lathe for sale using the GSK controller system to realize the Two - axis Control .The use of FANUC, Siemens, KND and other systems; with less noise, high precision, excellent performance characteristics, the CNC machine tools using mechanical and electrical integration design. Beautiful appearance, reasonable structure, wide range of uses, easy to operate. The machine can be automatically controlled, can automatically process a variety of parts of the first round, end, slot, any cone, spherical, and a variety of British and English cylindrical, tapered thread. SPECIFICATIONS
| project | unit | CK6130 | ||
| Max. swing dia. over bed(mm) | mm | Φ300 | ||
| Rail span in X direction | mm | 160 | ||
| Rail span in Z direction | mm | 240 | ||
| Max. Swing dia. over slide | mm | Φ100 | ||
| Top distance | mm | 350 | ||
| Maximum turning length | mm | 230 | ||
| Center high | Distance from bed | mm | 150 | |
| from the ground | mm | 1065 | ||
| Diameterspindle through hole | mm | Φ48 | ||
| Bar diameter | mm | Φ45 | ||
| Equipped with hollow chuck tie rod through hole | mm | Φ40 | ||
| Spindle end type | A2-5 | |||
| Chuck | mm | 6' | ||
| Spindle taper hole taper | No | chuck | ||
| Spindle maximum speed | rpm | 2500 | ||
| Number of tool rows | 3 | |||
| CNC system | Syntek 6TA | |||
| Lead screw model | X axis | mm | FDC2506-P3 | |
| Zaxis | mm | FDC3210-P3 | ||
| X/Z rapid movement speed | m/min | 6/10 | ||
| X-direction travel | mm | 280 | ||
| Minimum setting unit | mm | 0.001 | ||
| Main engine power | KW | 5 | ||
| Total power | KW | 10 | ||
| Weight | Kg | 1700 | ||
| Dimensions (L× W × H) | mm | 2200×1160×1620 | ||
