laboratory melt spinning machine

Product Description

Product Description

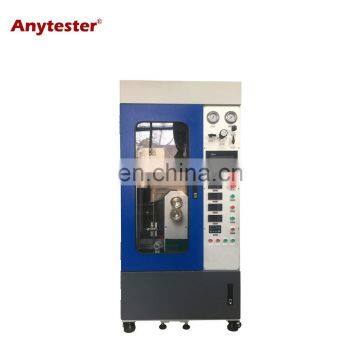

Product Description AT226 Laboratory Melt Spinning Machine is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling. featuresIt adopts perspective organic glass door, easy to observe;Touch screen display, easy to operate;Thicken stainless steel feed cylinder to make sample heating more uniform;Test temperature real-time monitoring, the max. Temperature can be 450℃;With stirring function to ensure uniform heating;With stainless steel winding roller, and there is a paper bobbin outside of the roller, easy to mount and dismount;Extruding power source: inert gas cylinder, with whole air pressure regulation facility; Specification ModelAT226 Melt Spinning MachinePressure range Design pressure: 3.6MPaInput pressure: ≤13MPa, Output pressure: ≤1.6MPa, accuracy: ±0.01MPaTemperature range 450℃ max.Temperature accuracy ±0.5℃Heating modeTwo sections of heating furnace, Mullite fiber insulationTemperature control mode Two pieces of temperature controller, high precision of ±0.5℃Feed cylinder500ml, stainless steel, with soaking distribution deviceSpinneret plate Dia. 0.2, 0.3, 0.4, 0.5 optionalL: D: 2:1~3:1 optionalSix holes or single hole optional(please specify before order)Winding system Rotary head Friction driven rotary headSpeed range0~2800m/minWinding roller dia. 120mm (outer diameter)Max. Winding dia.320mm Rotary head Friction driven rotary headPower supply AC220V, 50HzDimensions 700mm×500mm×1700mmWeights 130kg
