Steel Access Floor Raised Floor Building Material
| US$13.00-20.00 | 100 Square Meters (MOQ) |
Basic Info.
Model NO.
FS662-FS2000
Function
Fireproof, Soundproof
Surface Treatment
Bare Finish
Color
Bare Finish
Metal Type
Steel
Certification
CE, ISO, SGS
Usage
Offices
Advantage
Long Life of Usage
Customized
Customized
Transport Package
Pallet
Specification
600*600
Trademark
HT
Origin
Changzhou, Jiangsu, China
HS Code
73089000
Production Capacity
600, 000sqm/Year
Product Description

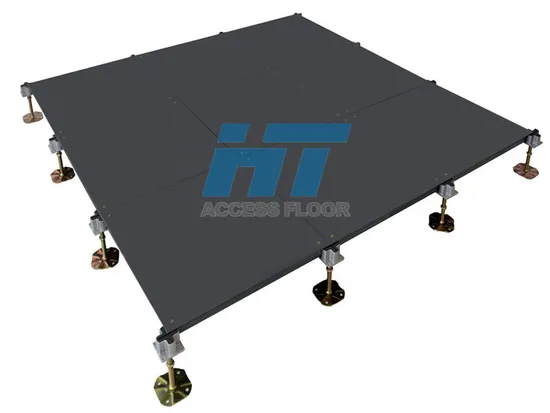

Product IntroductionHT 600*600*33mm steel access floor
is made of good quality cold-rolled steel sheet, which is stretched, spot-welded, and coated with epoxy powder after having been phosphoreted. There is foaming cement fully filled, with corner-lock holes punched in four sides of the panel.
Characteristics
Designed specially for office building
Excellent rolling load & ultimate load performance
Light weight cement fill makes panels solid and quiet
Completely noncombustible
Black electrodeposition cathodic epoxy paint finish for life time protection
Class A flame spread and smoke development rating
All-steel pedestals provide excellent impact load performance
Technical Parameter
| Type | Size | Uniform load | Concentrated load | Rolling load | Impact load | Ultimate load | ||
| 0.100''/2.5mm DEFLECTION | 10PASS | 10KPAAASS | ||||||
| FS662 | 600*600*35mm | 14.71KN/ | 2.94KN | 300KG | 2.45KN | 2.00KN | 100LB/45KG | 8.85KN |
| 610*610*35mm | ||||||||
| FS800 | 600*600*35mm | 17.78KN/ | 3.56KN | 363KG | 2.94KN | 2.45KN | 100LB/45KG | 11.25KN |
| 610*610*35mm | ||||||||
| FS1000 | 600*600*35mm | 22.22KN/ | 4.45KN | 454kG | 3.56KN | 2.67KN | 150LB/68KG | 14.50KN |
| 610*610*35mm | ||||||||
| FS1250 | 600*600*35mm | 27.78KN/ | 5.56KN | 567KG | 4.45KN | 3.56KN | 150LB/68KG | 18.36KN |
| 610*610*35mm | ||||||||
| FS1500 | 600*600*35mm | 33.34KN/ | 6.68KN | 680KG | 5.56KN | 4.45KN | 175LB/68KG | 22.17KN |
| 610*610*35mm | ||||||||
| FS2000 | 600*600*35mm | 44.45KN/ | 8.89KN | 907KG | 6.67KN | 5.56KN | 175LB/79KG | 29.42KN |
| 610*610*35mm | ||||||||
