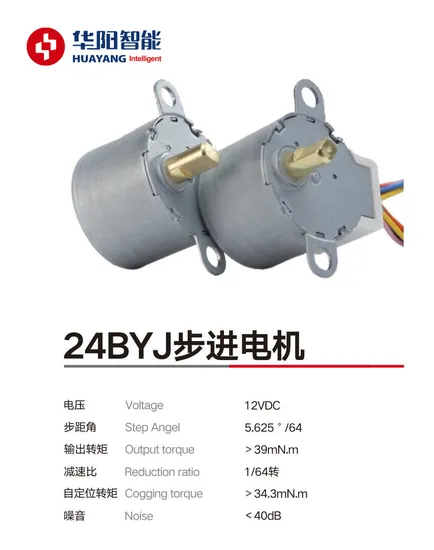

24byj Swing Motor for Home Applications 12V DC Stepper Motor

Product Description

Product Description Our company is an advanced leading Chinese manufacturer and supplier, which provides high performance products and efficient international services to the world.we focus on producting varies kinds of reduction stepper motors,synchronous motors,micro water pumps,which are widely used in air-conditioner,refrigerator,intelligent sanitary,automatic door lock,monitor,electronic instruments.All of our products can be customized.Our stepper motors are used widely in the valve control system,air-condetioner,sanitary ware,CCTV monitoring system,industrial automation control,and other industries.Following is the parameters of the 24BYJ48 stepper motor: Phase: 3 Certification: CCC, CE, ISO, ROHS, UL Step Angle(degrees): 5.625°/64 Rated voltage: 5v 12v 24v DC Slow dow rate: 1/64 Detent Torque: >34.3mN.m noise: <40dB Useage: Home Appliance
Huayang stepper motor products are widely used in the fields of household appliances,cleaning equipment,pump products and industrial automation,such as air condioner,washing machines,dishwashers ,vacuum cleaners,etc.With the improvement of living standards, more and more families get surveillance camera. The corresponding surveillance camera motor market is developing rapidly.
Performance Parameters

Model	Voltage V	Resistance (Q)/Phase (at 25ºC) (Ω)	Operating Frequenc (PPS)	Pull-in Torque (mN.m) 100PPS	Detent Torque (mN.m)	Max. Freeload Pull-in (PPS)	Max. Freeload Pull-out Frequency (PPS)	Temperature Rise K	Noise dB (A)	Step Angle (1-2Phase)	nsulation Class
24BYJ48	5	60	100	≥29.4	≥29.4	≥500	≥900	≤40	≤40	5.625°/64	E
	12	200	100	≥29.4	≥29.4	≥500	≥900	≤40	≤40
	12	250	100	≥29.4	≥29.4	≥500	≥900	≤40	≤40
	12	300	100	≥29.4	≥29.4	≥500	≥900	≤40	≤40
	12	300	100	≥58.8	≥29.4	≥500	≥900	≤40	≤40
	12	200	100	≥9.8	≥7.35	≥300	≥600	≤40	≤40	5.625°/16

Mechanical Dimensions:mm
