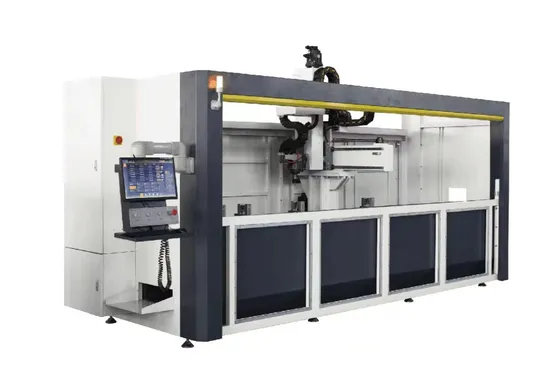

Aluminum Door and Window Four-Axis CNC Machining Center Innovative Aluminum Profile Drilling Machine

Product Description

Product Description
1,Suitable for precise processing of various holes, grooves, water slots, etc., in industrial aluminum profiles, door and window aluminum profiles, or curtain wall aluminum profiles.
2,Four-axis CNC machining system enables intelligent, efficient, and precise three-dimensional processing of complex workpieces.
3,Workpiece fixtures have automatic collision avoidance function for more efficient processing.
4,Equipped with a tool magazine for automatic tool change during processing, allowing for composite processing of different diameters.
5,This machine has 3 controllable CNC axes (X, Y, Z) for higher processing accuracy and efficiency. The spindle motor can rotate to -90°, 0°, and +90° positions, allowing for milling of all holes on three faces in one clamping operation.
6,The machine has high body strength, good rigidity, stable and reliable performance, high working accuracy, aesthetic appearance, and ease of operation.
7,All actions are achieved by servo motors and pneumatic systems.
8,Linear motion bearings are used in the motion pair, resulting in low resistance and high precision.
9,After manually adjusting the fixture positions, the machine automatically completes all processing tasks after loading, ensuring high work efficiency, safety, and reliability.
10,The main components of the machine head are made of cast iron and high-strength aluminum alloy, with a compact and rational structure, ensuring high strength.
11,All three-axis motion pairs use linear guide pairs to guarantee smooth motion of the X, Y, and Z axes. The X-axis utilizes bevel gear rack transmission for power, while the Y and Z axes use ball screw pairs to ensure processing accuracy.
12,Utilizes high-precision linear guide pairs, ball screws, gear racks, and imported servo motors to ensure smooth motion with high positioning and processing accuracy.
13,Equipped with an imported high-speed electric spindle for stable rotation, low noise, and strong cutting capability.
14,Intelligent CNC system and intuitive human-machine interface make operation more convenient and efficient.
Detailed Photos

Product Parameters

Input power supply:	380V/50Hz
Total power:	7.2kW
Spindle power:	5.5kW
Spindle speed:	18,000rpm
Working air pressure:	0.5~0.8MPa
X-axis lateral travel:	3,200mm
X-axis longitudinal travel:	450mm
Z-axis vertical travel:	400mm
X-axis feed rate:	0~60m/min
Y-axis feed rate:	0~15m/min
Z-axis feed rate:	0~15m/min
Spindle motor working position:	- 90°, 0°, +90°
Spindle speed:	0~24,000rpm
Tool holder:	ER25-Ф8mm, Ф10mm, Ф12mm
Number of fixtures:	4
Fixture cylinder stroke:	150mm
Processing range:	160×160×3,200mm
Repeat positioning:	±0.02mm
Surface roughness:	6.3μm
Dimensions:	4,500×1,500×1,950mm
Weight:	Approximately 1,100kg
