Solvent Less Solventless Laminating Machine for Flexible Packaging Film Printing Aluminum Foil, Paper Rolls

Product Description

ZT-1050/1350A Solvent Less Solventless Laminating Machine for Flexible Packaging Film Printing Aluminum Foil, Paper rolls
This machine is suitable for different types of film, paper and aluminum foil's high-speed laminating, with advantages of high efficiency, good performance, the product without solvent residue and so on
Advantages:
1. Tension control system:uses dancing roller systems with Japanese Fujikura low friction pneumatic cylinder control.
2. Coating part gap system: The gap between scraper roller and metering roller check the initial coating amount, it is adjusted byJapan brand ball reducer and the adjust precision is ±0.001 mm (1 micron), operators don't need to readjust the gap after cleaning as the pointer will automatically get back to the original gap. Its much more convenient and save time for operators.
3. Coating part, metering roller and transfer rubber roller, each use 1 servomotor+ servo driver controlled. Its more accuracy in coating amount control;
4. Machine structure, we use 80mm thickness solid steel, machine weight 14-15tons, strong machine body to make sure more stable high speed working.
5.Unwinders and rewinder are all use shaftless type auto Loader, with 3 and 6 inch core adaptors.
Optional devices:
Mono component glue machine Corona treater device Siemens Servo motor system /Allen-Bradley USA electric system for optional. Main parameters:

Printing Material's way	Left to right
Mechanical Speed	580m/min
Max Laminating Speed	500m/min
(The maximum production speed will be affected by the quality and properties of the substrate and binder used)
Max coating width	1050mm
Max roll width	1050mm
Min roll width	400mm
Unwind paper core	3''=76mm and 6''=152mm
Rewind paper core	3''=76mm and 6''=152mm
Unwind tension range	3--40kg(400N)
Rewind tension range	4--55kg(550N)
Rewind tape tension setting range	100%--60%
Max roll weight	1,000kg
Coating range	0.8-3g/sm
Dimension	5100x3600x2500MM
Power	53KW
Weight	14000KG
Machine color	Ivory white

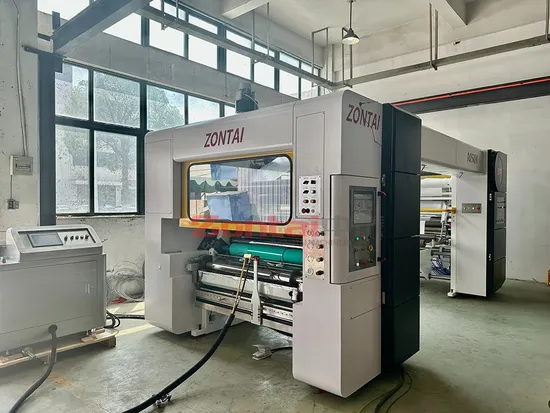

Machine photos:
Zontai in Exhibition:
More detail information, you can contact us.
