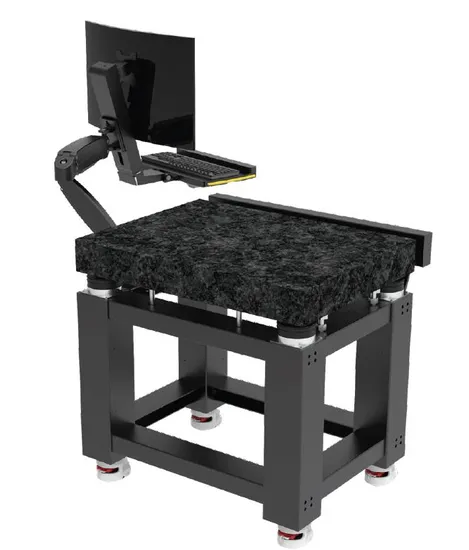

Professional Air Spring Vibration Isolation Table for Superior Balance
| US$999.00-9,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AVITAB-SLM-MD
Model No.
AVITAB-SLM-MD
Size
Customized
Control System
Mechanical control
Surface Flatness
<0.05mm/M2
Roughness
0.8-1.6um
Top plate material
Honeycomb breadboard or Granite
Restting accuracy
±0.1mm
Working Pressure
0.2-0.6Mpa
Vibration Isolation type
Pneumatic
Vibration Isolation Performace at 10Hz
≥95%
Auto Leveling
YES
Transport Package
Wooden Packing
Specification
Customized
Trademark
THERMOTEST/OEM
Origin
China
Product Description
Product DescriptionOptical Table Workstations provide an excellent platform for the most demanding applications. SLM air springs, composed of elastomer and metal, with screw-fixable base plate, air chamber made of elastic material, reinforced with steel rings, 10 sizes.
Mechanical valve control horizontal height valve, Grantiite platform tabletop, high rigidity support steel frame table legs. Supports custom sizes and loads.
System features1.Automatically adapts to changes in load and shift of center of gravity2.Customizable parameters3.Natural frequency: 3 - 5 Hz4.Load range: 0.5 - 100 KN/per spring5.CE and UL compliant
Properties of air spring1. Low frequency active or passive support2.Vertical and horizontal stiffness approx. 1:13.Vibration isolation4.Shock absorption5.Structure-borne sound insulation6.Anchor-free installation7. Can function unpressurised8.Natural frequency (stat.) 3 - 5 Hz Product Parameters
| Model | Size (W*D*H)mm | In |
| AVITAB-SLM-MD-060608H | 600×600×800 | 24×24×32 |
| AVITAB-SLM-MD-090608H | 900×600×800 | 36×24×32 |
| AVITAB-SLM-MD-080808H | 800×800×800 | 32×32×32 |
| AVITAB-SLM-MD-100808H | 1000×800×800 | 40×32×32 |
| AVITAB-SLM-MD-090908H | 900×900×800 | 36×36×32 |
| AVITAB-SLM-MD-120908H | 1200×900×800 | 48×36×32 |
| AVITAB-SLM-MD-101008H | 1000×1000×800 | 40×40×32 |
| AVITAB-SLM-MD-151008H | 1500×1000×800 | 60×40×32 |
| AVITAB-SLM-MD-181008H | 1800×1000×800 | 72×40×32 |
| AVITAB-SLM-MD-201008H | 2000×1000×800 | 80×40×32 |
| AVITAB-SLM-MD-121208H | 1200×1200×800 | 48×48×32 |
| AVITAB-SLM-MD-151208H | 1500×1200×800 | 60×48×32 |
| AVITAB-SLM-MD-181208H | 1800×1200×800 | 72×48×32 |
| AVITAB-SLM-MD-201208H | 2000×1200×800 | 80×48×32 |
| AVITAB-SLM-MD-241208H | 2400×1200×800 | 96×48×32 |
| AVITAB-SLM-MD-151508H | 1500×1500×800 | 60×60×32 |
| AVITAB-SLM-MD-181508H | 1800×1500×800 | 72×60×32 |
| AVITAB-SLM-MD-201508H | 2000×1500×800 | 80×60×32 |
| AVITAB-SLM-MD-241508H | 2400×1500×800 | 96×60×32 |
| AVITAB-SLM-MD-301508H | 3000×1500×800 | 120×60×32 |
Name Rule
| AVITAB-SLM-3-MD-080808H | ||||
| AVITAB | SLM | 3 | MD | 080808H |
| Size:800*800*800H mm | ||||
| MD: Mechanical Control IC: Electric Control | ||||
| Size : 1,3,6,12,24,48,72,96,144,192 | ||||
| Type: ADS,ALS,SLM,CDS,LDS,AVI | ||||
| AVITAB,OEM | ||||
SLM-1 | SLM-3 | SLM-6 | SLM-12 | SLM-24 | |
1 post (kg) | 65 | 180 | 280 | 600 | 1300 |
4 post (kg) | 250 | 750 | 1500 | 3000 | 6000 |
6 post (kg) | 375 | 1125 | 2250 | 4500 | 9000 |
8 post (kg) | 500 | 1500 | 4500 | 13500 | 27000 |
| Natural Frequency | Vertical Frequency: 3-5 Hz Horizontal Frequency: 3-5 Hz | ||||
| Adjustable Height | ±0.1 to ± 0.02mm | ||||
| Efficiency | 85% under 10Hz | ||||
