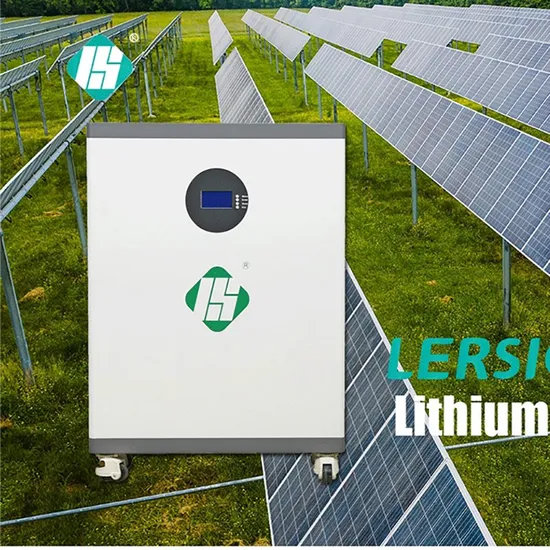

H Series 51.2V 200ah High-Performance Eve Core Voltage Stackable Solar Battery LiFePO4 Lithium Battery Pack Solar Energy Storage System

Product Description

Detailed Photos

Model No.	Hi5	Hi10	Hi14
Battery capacity	5Kwh	10Kwh	14.33kwh
Cells	Lithium Iron Phosphate(LFP)	Lithium Iron Phosphate(LFP)	Lithium Iron Phosphate(LFP)
Nominal capacity	100Ah	200Ah	280Ah
Cells combination	16S1P	16S2P	16S1P
Nominal voltage	51.2V	51.2V	51.2V
Charging voltage	57.6V	57.6V	57.6V
Voltage at end of discharge	43.2V	43.2V	43.2V
Standard charge current	sustained current 42.4A cut-off current 0.01CA	sustained current 42.4A cut-off current 0.01CA	sustained current 42.4A cut-off current 0.01CA
Max. charge current	100A	150A	150A
Standard discharge current	80A	100A	106A
Max continuous discharge current	100A	150A	150A
The factory voltage	50.4V-52V	50.4V-52V	50.4V-52V
Self discharge	≤2% per month	≤2% per month	≤2% per month
Monitoring and control communications	RS232, RS485 port, serial port communication	RS232, RS485 port, serial port communication	RS232, RS485 port, serial port communication
Working condition	temperature:-20ºC~60ºC; humidity≤95%; altitude≤4000m	temperature:-20ºC~60ºC; humidity≤95%; altitude≤4000m	temperature:-20ºC~60ºC; humidity≤95%; altitude≤4000m
Product life	20 years	20 years	20 years
Cycle life	≥6000 cycles@0.2C 80% SOC	≥6000 cycles@0.2C 80% SOC	≥8000 cycles@0.2C 70% SOC
Min. battery capacity standard	≥95%	≥95%	≥95%
Differential pressure between battery charging and discharging ends	≤300mV	≤300mV	≤300mV
Product dimension WxDxH	575*445*160mm	725*605*160mm	815*604*250mm
Net weight	48±1KG	101±1KG	130±1KG
Installation	wall mounted, outdoor hanging wall type, floor type
Scalability	Max 4 batteries in parallel

MODEL NO.	CARTON SIZE(CM)	PRODUCT SIZE (CM)	G.W (KGS/PC)	N.W (KGS/PC)	REAL CBM /BOX	20GP (PCS)	20GP (CBM)	20GP (KGS)	40GP (PCS)	40GP (CBM)	40GP (KGS)
Hi 5	62.5*51*20.5	57.5*44.5*16	57	48	0.07	336	25	19152	432	31	24624
Hi 10	91.7*68*34.9	72.5*60.5*16	116	101	0.22	115	25	13340	220	48	25520
Hi 15	89.7*62.8*46.8	81.5*60.4*25	145	130	0.26	95	25	13775	176	46	25520

FAQ
1. What is your company strength?
Strong R&D Team Headquartered in Shanghai, Lersion R&D team has over 50 engineers. Relying on Shanghai's rich talent resources and innovating mechanisms, through deep cooperation with Shanghai universities, we design and continually improve solar inverters and battery circuit,and have obtained over 30 patents.
2. What is your product advantage?
1-300KW Full Series Solar Inverter available Germany Infineon IGBT Module America DSP Chip Technology Color Touch screen *More Durable*More Safe* more stable *High End LiFePO4 & Gel battery Expert Grade A Lithium Battery Long cycle life >6000 cycles High Efficiency & Fast Charging Intelligent Battery Management Compatible with Various Inverters
3. How do you control the product quality?
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard. b) In production have 4 times function testing. c) All of our products with 100% burn-in testing. d) 100% QC testing before delivery.
4. Do you accept OEM/ODM?
Yes, we do.
5. Are you factory ?
Definitely.
6: Can you provide full solar system?
Yes,we provide full set soalr system ,with system design and full system equipments provided
7.How about the delivery time?
3 to 5 days for sample; 7-15 days for bulk order.
8.What is the warranty of inverter?
A4: 2 years ,3 years,5 years Etc
9: How to solve the technical problem?
24 hours after-service consultancy just for you and to make your problem to solve easily.
