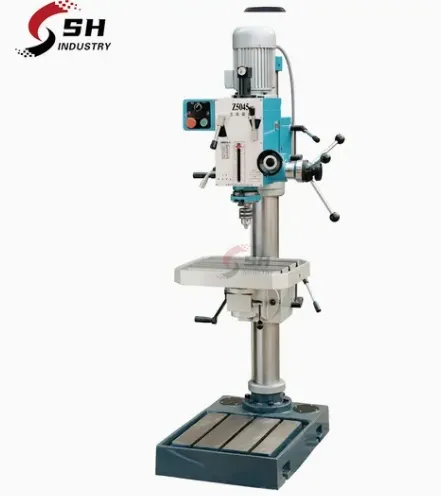

Auto Feed Vertical Drilling Machine Z5032 Z5040 Z5045 High Precision Cheap Vertical Drilling Machine

Auto Feed Vertical Drilling Machine Z5032 Z5040 Z5045 High Precision Cheap Vertical Drilling Machine

US$1,100.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5032 Z5040 Z5045
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Auto Feed Vertical Drilling Machine Z5032 Z5040 Z5
Maximum Drilling Diameter
32
Spindle Taper
Mt3
Spindle Travel
130
Spindle Speed Steps
6
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000

Packaging & Delivery

Package Size
185.00cm * 75.00cm * 100.00cm
Package Gross Weight
430.000kg

Product Description

Auto Feed Vertical Drilling Machine Z5032 Z5040 Z5045 High Precision Cheap Vertical Drilling Machine
Product Description
Main technical Specifications:
Specifications Z5032 Z5040 Z5045
Max.drilling dia. 32mm 40mm 45mm
Spindle taper M.T.3 or R8 M.T.4 M.T.4
Spindle travel 130mm 130mm 130mm
spindle speed steps 6 6 6
spindle speed range 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Min.distance from spindle axis to
column		 283mm 283mm 283mm
Max.distance from spindle nose to
worktable		 725mm 725mm 725mm
Max.distance from spindle nose to
stand table		 1125mm 1125mm 1125mm
of headstock 250mm 250mm 250mm
Swivel angle of headstock
(horizontal/perpendicular)		 360°/±90° 360°/±90° 360°/±90°
of worktable bracket 600mm 600mm 600mm
Worktable size of avaliablity 380×300mm 380×300mm 380×300mm
Swivel angle of table horizontally 360° 360° 360°
Table leaned ±45° ±45° ±45°
Size of stand worktable of avaliability 417×416mm 417×416mm 417×416mm
Motor Power 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
speed of motor 1400 r.p.m 1400 r.p.m 1400 r.p.m
Net weight/Gross weight 430kg/480kg 432kg/482kg 435kg/485kg
Packing size 1850×750×1000
mm		 1850×750×1000
mm		 1850×750×1000
mm

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
