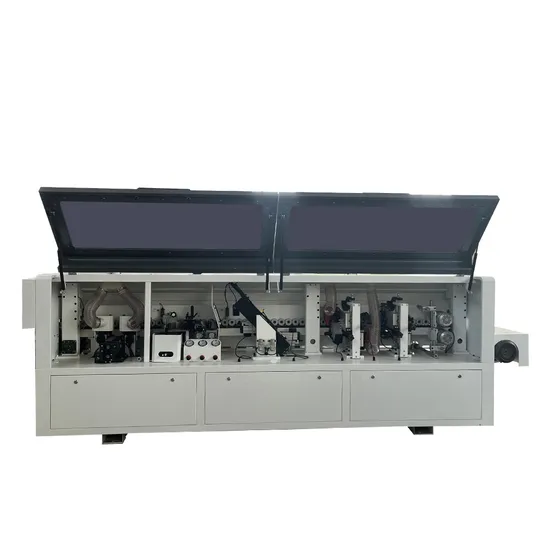

China Factory Wooden PVC MDF Edge Banding Machine for Precise Edge Finishing with Pre-Milling Function

Product Description

YINGZHUO is a professional machinery and equipment technical enterprise combines the scientific research,explore,manufacture,sales and service together.
The company's motto is ''Customer first. Good will is the best policy'' Accordingly. it pures high quality goods and customer service and has won the titles ''High Standard'',''Fine Quality'', ''Famous Brand'' and ''Excellent Service'' from the government.
Furthermore,its products are all ISO9001 2008 and CE certified.We here at YINGZHUO are dedicated to continually perfecting our performance and providing high quality goods in appreciation for the support and cooperation of our customers.

Model	YZ-S1	YZ-S2	YZ-S3	YZ-S4	YZ-SF
Feeding speed	18-23m/min	18-23m/min	18-23m/min	18-23m/min	18-23m/min
Panel length	≥80mm	≥80mm	≥80mm	≥80mm	≥80mm
Panel width	≥50mm	≥50mm	≥50mm	≥50mm	≥50mm
Band width	12-60mm	12-60mm	12-60mm	12-60mm	12-60mm
Band thickness	0.4-3mm	0.4-3mm	0.4-3mm	0.4-3mm	0.4-3mm
Weight	650kg	800kg	1100kg	1200kg	1350kg
Total power	7.5kw	7.5kw	14.5kw	13.4kw	17.5kw
Pneumatic pressure	0.6Mpa-0.8Mpa	0.6Mpa-0.8Mpa	0.6Mpa-0.8Mpa	0.6Mpa-0.8Mpa	0.6Mpa-0.8Mpa
Machine size	2300*700*1250mm	2800*750*1250mm	3900*750*1250mm	4300*750*1250mm	5200*900*1500mm

1. Solid welded body frame to ensure the stability of the machine.
2. Adopts double rails end-cutting unit, to achieve the rapid motion of the machine.
3. End-cutting and corner rounding units adopt SMC brand pneumatic components, to ensure the working performance.
4. PLC and touch screen as Delta brand from Taiwan.
FAQ:
1.How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.
2.What payment do you accept?
L/C and T/T or other ways.
3.What is your delivery time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
4.What's your warranty?
If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.
5.What's your srvices?
One-stop service, meet needs of the customers from individuals to international companies.
OEM service accepted.
After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
