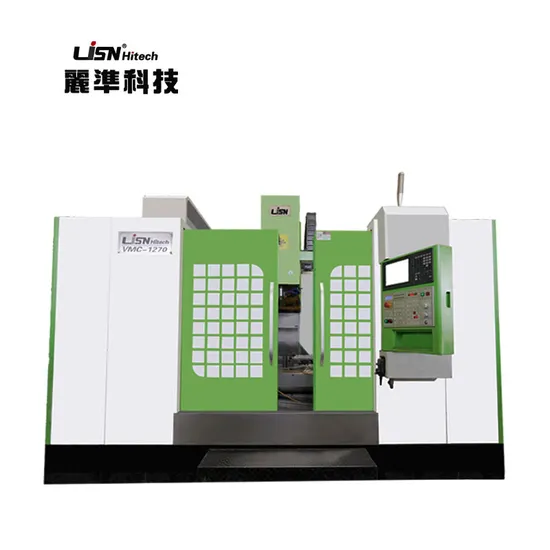

High Speed and Heavy Duty Vmc1270 Vertical Milling Machine CNC Machining Center with Price

Product Description

Product Description
The worktable size of the CNC Vertucal Machining Center VMC 1270 is 600mm *1360mm. For processing some large complex workpiece, the wide worktable size will be better, and the maximum bearing weight of the workbench is also up to 900kg. Both three axis are using High precision roller type guideway, which with the characteristics of heavy cutting rigidity of hard guideway and fast movement and low wear of linear guideway, the rigidity and control are greatly improved. The Integrated bearing block is also using on this machine, which can effectively improve the overall rigidity of the axial system and effectively avoid the rotation deformation of the screw. At the same time, the oil and water separation of the base design can be greatly prolong the service life of the chip fluid and reducing the cost and meet the requirements of environmental protection requirement.
Detailed Photos
Product Parameters

Item	Specifications	MODELS→	VMC1270
Travel Range	X/Y/Z Axis Travel	mm	1200/700/700
	Distance From Spindle Nose To worktable	mm	150-750
Worktable	Worktable (WidthxLength)	mm	1360x600
	Max Load Bearing Of Worktable	kg	900
	T-Slot(number of SlotxSlot WidthxPitch)	mm	518x152.5
Spindle	Spindle Hole Taper	type	BT50
	Spindle Speed Range	r/min	8000/10000
Feedrate	X/Y/Z Rapid Feed Speed	m/min	20/20/20
	Max Cutting Feed Speed	mm/min	1-8000
Accuracy	X/Y/Z Position Accuracy	mm	0.005
	X/Y/Z Re-Position Accuracy	mm	0.003
Machine Dimension	Machine Dimension	mm	3680X2780X3100

Standard Configuration for VMC Series 1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 10000 RPM spindle
10.Worktable cleaning water gun

Optional Configuration for VMC Series 1. 24 disc manipulator tool magazine
2. Crawler chips remover
3. NC rotary table (4 Axis)
4. CTS
5. Tool detection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier
Company Profile

FAQ
1. Is it all right to make customer's own brand name? A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
