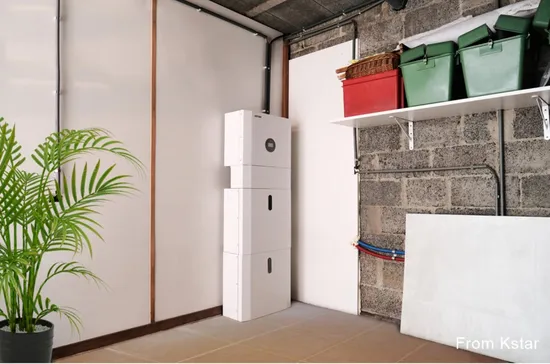

Kstar Energy Storage System Battery Solutions Hybrid Inverter 10kw with Full Certification

Product Description

Product Description Shinefar Solar specialize in manufacturing PERC, N-type TOPCon, and HJT solar panel. Specializing in research and development of solar panel, on/off grid system and hybrid solar system . We devote ourselves to provide excellent one- stop solar solution.
Electrical Specification

Hybrid Inverter Model	E10KT
PV String Input
Max. Continuous PV Input Power	20kW
Max. DC Voltage	1100V
Nominal Voltage	720V
Start Voltage	250V
MPPT Voltage Range	140V-1000V
MPPT Voltage Range (Full Load)	420V-850V
Number of MPPT	2
Strings Per MPPT	1
Max. input Current Per MPPT	15A
Max. Short-circuit Current Per MPPT	20A
Output(AC)
Nominal AC Output Power	10kW
Max. AC Apparent Power	11kVA
Nominal AC Voltage	400Vac
AC Grid Frequency Range	50 / 60Hz(±5Hz)
Max. Output Current (A)	16A
THDi	<3%
Battery Input
Battery Type	LFP (LiFePO4)
Nominal Battery Vo ltage	51.2V
Charging Voltage Range	44-58V
Max. Charging Current	160A
Max. Discharging Current	200A
Battery Capacity	200/400/600/800Ah
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	97.0%
General Specifications
Dimensions W x H x D	540*980*240mm
Weight	49kg
Operating Temperature Range	-25ºC~+60ºC
Cooling Type	Natural cooling
Max. Operating Altitude	2000m
Max. Operating Humidity	0~95% (No Condensation)
IP Class	IP65
Topology	Battery Isolation
Communication Interface	RS485/CAN2.0/WIFI/4G
Display	LCD/APP

Global Layout With a solid global presence, Shinefar Solar has been shipping products to Europe, Latin America, North Africa, and Southeast Asia. To better serve our international customers, we have established seven overseas branches and service centers in Germany, Spain, Poland, Finland, Thailand, Brazil, and the UK. Furthermore, our European manufacturing base in Spain is currently under construction and is scheduled to commence production in 2026.



Rated products You May be interested ! Please click the related products. View more >>
Our factory Shinefar solar advanced production facilities span over 35000m2 in Huzhou, Zhejiang which with an annual production capacity of 3GW. The factory currently has 3 fully automated production lines, each panel passes five quality tests, checks layer by layer, and hand over to the customer's hands.
Packaging & Shipping Discover Our Solar Panel Packaging Solutions:
1.Standard Packaging:31 pcs/ pallet or 37 pcs/pallet. Efficiency meets practicality with our standard packaging.
2.Special Packaging:1 pcs/carton or 2 pcs/carton.This bespoke approach caters to your specific order sizes and ensures your solar panels arrive in pristine condition.
Project case With a global presence that extends to Brazil, Morocco, Ukraine, Vietnam, and beyond, we are proud to be at the forefront of solar innovation. Our footprint in these diverse regions underscores our commitment to sustainable energy solutions. Through photovoltaic projects that harness the sun's brilliance, we're shaping a greener, cleaner future for the world.
Global exhibition
Certifications According to the needs of different market, we have full certification:
ISO 9001; ISO 14001;ISO 18001; TUV; CE; ROHS; IEC;PID ; DEWA; CB; RETIE; immetro; Ammonia 62716; slae mist corrosion 61710; SGS-CPVT Ex treme Testing; SGS-Statement.
