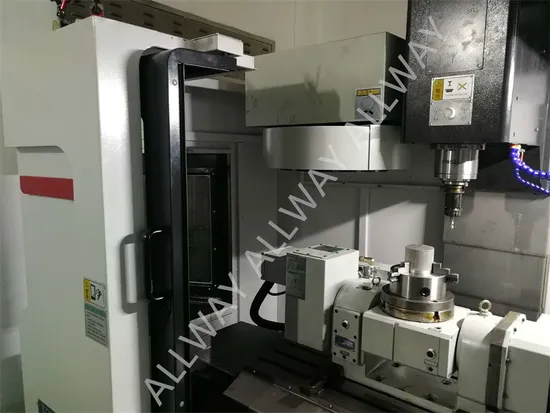

3+2 Type Vertical Machining Center 5 Axis CNC Milling Machine

Product Description

3+2 type 5 axis Vertical Machining Center Cnc Milling Machine
Advantage:
1. 3+2 type 5 axis VMC, 5 axis 5 synchronization or 5 axis 4 synchronization.
2. High effencient. performance in high reliable!
3.Siemens , Fanuc or Heidenhain etc.
1.Product introduction and use
XHS7145 vertical machining center(XKS7145 CNC milling machine) adopts X, Y, Z three-axis servo direct connects half closed loop control,3-axis are 45# linear guideway, with fast speed, high rigidity, low friction, low noise, low temperature rise change characteristics. servo motor of spindle driven through the synchronous belt. It can processing a variety of a complex parts such as plate, plate, shell,cam, the mould, and once clamping can complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties, medium and small batch parts. Can be equipped with the fourth axis rotary table for the processing requirements of special parts.
2. structure feature
3-axis are 45# linear guideway, with fast speed, high rigidity, low friction, low noise, low temperature rise change characteristics. with automatic forced lubrication, improve the accuracy of machine tool life; Z direction add counter weight balance, to ensure the smooth movement of the spindle box; Z direction drive motor with power-off brake device;
3.STANDARD CONFIGRATION:
1) High precision and speed spindle unit(8000rpm).80-8000rpm;
2) Spindle servo motor: Power5.5 torque 26Nm;
3) BT40 umbrella type 16T magazine; 16;(XKS7145 without)
4) Manual pulse generator(hand wheel).;
5) Z axis rigid tapping;
6) Z axis balancing weight Z;
7) Centralized automatic oil lubrication; ;
8)outside water coolant and coolant system;(,,,);
9)chip by manual;
10)All protective sheet metal shield and guideway shield;
11)leveling pads;
12) Work light;
13)warning lamp;
14)Toolbox;
15)Fanuc 0i MF5 CNC system
4.Main technical parameters

Specification			unit	value
Spindle		Taper	7:24	BT40
		Speed	r/min	80-8000
		Spindle nose to work table	mm	130-630
		Spindle center to column guideway face	mm	485
Table		Table size	mm	1000*450
		T-slot No./width/distance	mm	5-18*80
		Max. loading of table	Kg	600
Lead screws		X-axis	mm	40*12
		Y-axis	mm	40*12
		Z-axis	mm	40*12
Travel		X-axis	mm	700
		Y-axis	mm	450
		Z-axis	mm	500
Moving		Rapid moving of X	m/min	24
		Rapid moving of Y	m/min	24
		Rapid moving of Z	m/min	18
Tool magazine XKS7145: No.		type		Umbrella(standard)/Arm(option)
		Tool number		16T(standard)/option:24
		Max. diameter of tools(w/o adjacent)	mm	24T:Ø80/Ø125
		Max. length of tools	mm	300
		Max. weight of tools	kg	6
cooling		Cooling pump power	w	420
		Cooling flow	L/min	40
		Cooling tank volume	L	200
Lubrication type				auto
Position accuracy of X/Y/Z			mm	0.012
Re-position accuracy			mm	0.007
Power type	AC voltage		V	3 380V±10%
	frequency		HZ	50Hz±10%
The total capacity of electricity utilization			kva	12
Air pressure			MPa	0.5-0.7
Weight			Kg	4200
Overall dimension (L*W*H)			mm	2400*2000*2500mm

5.OPTIONAL CONFIGURATION:
1) Mitsubishi M70; Siemens ,GSK, KND CNC system;
2) hand held air gun;
3)The 4th axis ;
4) 24 tools ATC made in Taiwan;(XKS7145 without)
5)coolant through spindle hollow;
6)Automatic chip conveyor(chain type);
7) auto tool length measurement .
8)high pressure cooling pump;
9)3+2 axis
10) robot.
11)etc.
