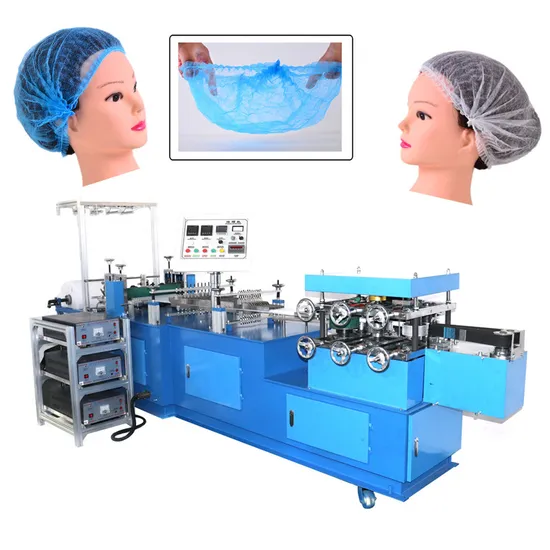

Beauty Salon Use Bouffant Cap Making Machine

Product Description

Automatic Bouffant Cap Making Machine
Part 1. Technical Specifications
1.1 Main specifications and technical parameters

Model	SAN-BC
Material	Non-woven or plastic film
Material width	480 mm
Finished width	2 cm
Non-woven thickness	10-18 g
Material max. diameter	600 mm
Finished product size	Stretched 48 cm
Working speed	150-200 pcs/min
Main machine	1.5 kw
Converter	1.5 kw
Total power	6 kw
Dimension	3900*1000*1800 mm
Wooden box packing size	4000*1100*1760 mm
Weight	750 kg

Part 2. Main machine parts
2.1 Main parts

Name	Quantity
Unwinding unit	Mechanical axis 1 pcs
Adjustable folding unit	Stainless steel 2 pcs
Driving unit	2 sets
Heating unit	2 pcs
Heating roller	3 pcs
Folding unit	1 pcs
Reinforcing ironing unit	1 pcs
Heat sealing unit	1 pcs
Shutoff unit	1 pcs
Roll cutting unit	1 set
Copper ring	9 pcs
Main motor	1.5 kw 1 pcs
Convertor	1.5 kw 1 pcs
Temperature meter	4 pcs
Ultrasonic unit	3 pcs

2.2 Wearable parts along with the machine

Name	Quantity
Cutting knife	1 set
Copper ring	2 pcs
Carbon brush	2 pcs
Blade	1 pcs
Screw	20 pcs
Tool box	1 pcs
Heating tubes	3 pcs

Our Service
⇒One year guarantee for the whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians oversea set-up and workers training.
⇒User- friendly English for operation system.

Packing & Delivery

Packaging Details: Stretching film packing
Delivery Detail: Shipped in 30 days after payment
PACKING IS SEAWORTHY AND SAFE.
Exhibition♥

Q1: What is the warranty for the machine?
A1: For the machine, we offer one year warranty. If any quality problems occurred under normal conditions during this period, we will take on the costs of maintenance and replacement and other related costs.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training services and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over10 years of experience in this industry, we have accumulated various contact information of upstream&downstream firms in fields of raw material, auxiliary material, and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with a favorable price if it is out of the warranty.
