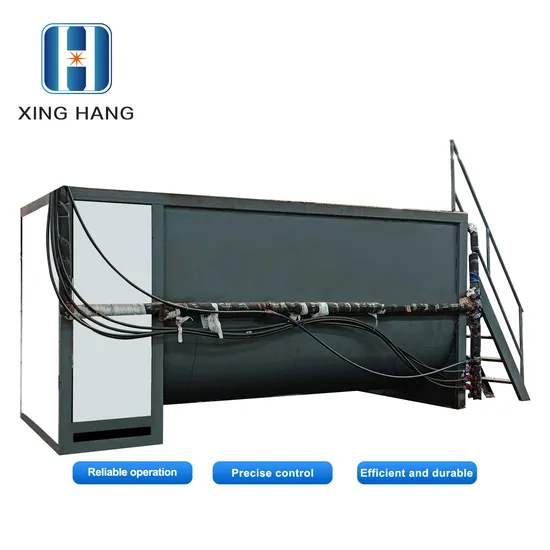

Mushroom Compost Mixing Machine for Sawdust Processing

Product Description

Product Description

PRE-WET MIXER

Before the mushroom base culture material is mixed, it can effectively soften the wood chips and reduce the microholes generated by the mushroom bar in the bagging operation, thereby improving the pass rate of the mushroom bar. suitable for medium and large mushroom base annual production operations.
Characteristics of pre-wet mixer
1. Precise control of moisture: The pre wetting mixer adopts an advanced control system, which can accurately control the amount of moisture added according to the needs, ensuring that the humidity of each batch of powder is uniform and consistent
2. Efficient mixing: The pre wetting mixer is equipped with a powerful mixing device, which can quickly mix moisture with powder, improve mixing efficiency, and reduce construction time.
3. Automated operation: The controllable humidification mixer has automated operation functions. Simply set the water addition amount and mixing time, and the machine can automatically complete the humidification and mixing process, reducing manual operation and improving work efficiency.
4. Flexibility and adaptability: The pre wetting mixer is suitable for different specifications of wood chips, and can adjust the humidification amount and mixing time according to needs to meet the requirements of different projects.

DESIGN DRAWINGS

It is mainly composed of a rotating spindle and multiple curved stirring blades. Through the interaction between the stirring blades and the rotating spindle, water and wood chips are evenly mixed together. Structure of pre-wet mixer
1. Blender: Made of carbon steel plate, the inner surface is polished to prevent the raw materials from adhering to the blender surface after mixing. 2. Reducer: Using a guide wheel reducer, the high-speed rotation of the motor is converted into low-speed high torque output. 3. Motor: The motor outputs rotational force, which drives the mixing drum to rotate after being slowed down by the reducer. 4. Feed inlet: used to feed the raw materials that need to be mixed into the mixer. 5. Discharge port: The mixed finished material is discharged from the mixer.
Product Parameters

Specifications	Dimensions	Mixing bin size	Motor power	Weight	Mixing form	Opening method
15m3	4775x2120x2400mm	3816x2000x2400mm	22kw	5420kg	Double twisted Dragon	Mechanical opening

Product show

AFTER SALE SERVICES

1.Allocation chart as the buyer's request will be supplied.
2.Operation manual will be supplied after shipment.
3.Our Machine guarantee period is 12 months.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer on line.
6.Training workers on line. Company Profile
