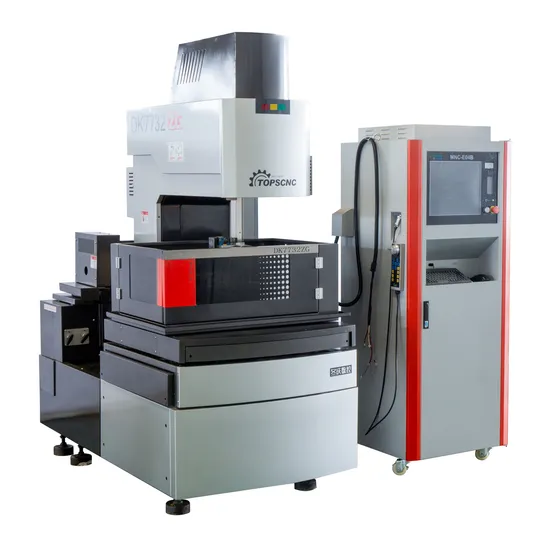

Servo Motor New Design Wire Cut EDM

Product Description

Technique Machine

Technical parameter	Unit	DK7732ZG-I	DK7740ZG-I	DK7750ZG-I	DK7763ZG-I
Table size	mm	740×460	840×540	1020×640	1180×750
Table travel (X*Y)	mm	400×320	500×400	630×500	800×630
Max.workpiece dimension	mm	800x500	900x600	1000x700	1200x800
Max. thickness of workpiece	mm	300		350
Max. workpiece weight	kg	300	500	800	1000
Z axis vertical stroke	mm	250		300
Taper U,V shraft trip	mm	±30 × ±30
Max. taper angle/workpiece thickness		±3°/80mm
Control and connection mode		X,Y,U,V all servo motor/ direct connect
Z-axis control		electronic control
Linkage control axis number		X,Y,U,V ( or can match 5 axis)
Max.trip wire cylinder	mm	200
Dia of molybdenum	mm	φ0.1~φ0.25 ( standard φ0.18 )
Max. wire feed rate	m/sec	1~11.4m/sec frequency adjustable
Max.lay aside wire length	m	250
Max. machining speed	mm2/min	100--180
Machining precision	mm	≤0.008
Surface roughness	μm	one time Ra≤2.5,three times Ra≤1.0 four times Ra≤0.8
Min. control pace	mm	0.001
Power supply		3N-380V/50Hz
Max. working current	A	10
Power consumption	Kw	≤6
Work liquid		JR3A
Water tank	L	90
FiLtering mode		Paper filter/Italy pump
Machine weight	kg	2200	2600	3200	3900
Machine dimension	mm	1850×1100×2220	1900×1300×2240	2210×1650×2250	2450×1920×2250
Package size	mm	2000×1500×2400	2100×1500×2400	2500×1700×2600	2700×2000×2600

Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
TOPSCNC people wish to share success with you in the future!
Certificates
Our service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2) Warranty: One year after shipment,consumables are not included.
3) The quotation do not include installation and education training fee.
4) Engineers available to overseas repair service.
5) Payment Method: T/T or L/C at sight
6) Delivery time : 18--25 days
7) Packing : Standard export wooden cases
8)Port: Shanghai.
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China
