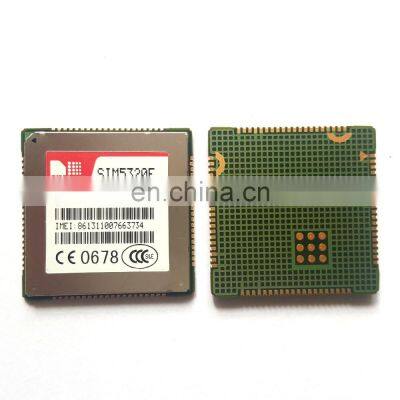

SIMCOM SIM5320 3G/GSM/GPRS Module Sim5320A Sim5320E Sim5320J

Product Description

Product Description
Product DescriptionSIMCOM Sim5320 3G/GSM/GPRS Module Sim5320A Sim5320E Sim5320J• The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module in a LCC package which supports HSDPA up to 3.6Mbps for downlink data transfer.• It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.General features• SIM5320A：Dual-Band UMTS/HSDPA 850/1900MHzQuad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz• SIM5320(J)E：Dual-Band UMTS/HSDPA 900/2100MHzQuad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz• SIM5320J：Dual-Band UMTS/HSDPA 850(800)/2100MHzQuad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz• GPRS multi-slot class 12• EDGE multi-slot class 12• Output power- UMTS 850/1900: 0.25W- UMTS 900/2100: 0.25W- GSM850/GSM900: 2W- DCS1800/PCS1900: 1W• Control Via AT Commands• Supply voltage range: 3.4~ 4.2V• Operation temperature: -30℃ to +80℃• Extended operation temperature: -40℃ to +85℃• Dimension: 30 * 30 * 2.9 mm• Weight: 5.6g Specifications for Data transfer• HSDPA- Max. 3.6Mbps(DL)•WCDMA- Max.384Kbps(DL), Max.384Kbps(UL)• EDGE Class:- Max. 236.8Kbps(DL),Max.118Kbps(UL)• GPRS- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)• CSD- GSM data rate 14.4Kbps- WCDMA data rate 57.6Kbps- WCDMA 64kbps CSD for Video call• Multi-PDP connect applicationOther features• USB Driver for Microsoft Windows2000/XP/Vista/7/8/10• USB Driver for Windows CE/Mobile• USB Driver for Linux /Android• Firmware update via USB• MMS• TCP/IP• MUX protocol over UART• FTP/FTPS/HTTP/HTTPS/SMTP/DNS• FOTAInterfaces• USB2.0• UART• SIM card• SPI• I2C• Keypad• Constant current sink• GPIO• RTC• ADC• Mic/Receiver **• PCM ** Specifications for SMS• Point to point MO and MT• Text and PDU modeSupport embedded Script Language• LUA Script Language• Embedded AT *Specifications for GPS/Location• CELL assistant Location (No GPS)• A-GPS: MS-Based, MS-Assisted• Stand-alone GPS• QUALCOMM XTRA GPS modeCertificationsSIM5320A• FCC• PTCRB• IC• ROHS,• REACH SIM5320E• CE• GCF• ROHS• REACH• NCC• CCC• CTA SIM5320J(E)• Telec• JATE Carrier ApprovalsSIM5320A• AT&T, Rogers SIM5320E• TIM, Orange, Vodafone SIM5320J• Docomo SIM5320JE• SoftBankWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
