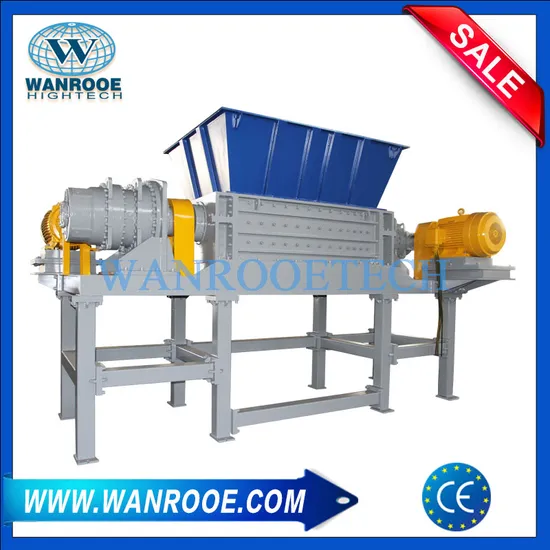

Pnss Series Waste Rubber Tire Processing Machinery/ Tire Recycling Shredder Machine

Product Description

PNSS Series Waste Rubber Tire Processing Machinery/ Tire Recycling Shredder Machine
Application Areas:
Car Tire Truck Tyre Rubber TDF Shredder has been designed for a wide array of applications and industries, suitable for shredding solid material such as tire, car tire, bicycle tires, motorcycle tires, car tires, truck tires, engineering tires, rubber products, carpet padding, rubber floor material, patio deck, livestock mats, sidewalk and etc.
1.Civil Engineering Applications: They can be used as landfill gas trench collection walls, as backfill for road landslide repair, as vibration-reducing material for railway lines, and as backfill for maintaining walls.
2.Ground and Crumb Rubber: For example, it can be used in paving projects or be moulded into products. Common examples of rubber moulded products include carpet padding, rubber flooring materials, patio decks, livestock mats, movable speed bumps, sidewalks, dock bumpers, railroad crossing blocks just to mention but a few.
3.Carbon Source: Instead of using coke or coal in steel mills, rubber can be used as a source of fuel. In fact, studies have recommended that steel mills should adopt the burning of rubber as fuel instead of coal since coal is mined and can be depleted. Using rubber as fuel is a great way for these mills to go green and reduce their carbon fingerprints.
Description:
The TDF tire shredding Machine system is designed to produce up to 1.2-10 tons per hour of TDF. TDF systems produce a 25mm to 152mm(1"-6") rubber chip, which is used as a coal additive for industrial boilers. Many of these facilities are turning to TDF because it burns hotter and cleaner than coal and is more cost-effective. Rough shreds can be outputted for use or processed further to remove steel from the rubber resulting in Wire-free TDF. This plant is made of two main parts: double shaft shredder and screen.
Technical Features:
1.No polluted water, no waste gas, and no waste residence during the production process;
2.Compact structure, small space, and easy maintenance;
3.Lower energy consumption and good cost performance of investment;
4.shredder is designed with a powerful engine, long working length and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine;
5.The two cutting rotors powerfully grab the feed material;
6.Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
7.Screen is used to make sure the size of the output can meet each customer's requirement( From 40mm-75mm);
8.Cutters removal and replacement can be carried out safely and simply.
9.Our tire shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost-Effective Precision, High Radial Loads.
Specifications:

Model Item	WTP4060	WTP4080	WTP40100	WTP40120	WTP40150
Dimension L/W/H(mm)	2890×1470×2460	3350×1670×2460	3500×1870×2460	4100×2380×2460	4400×2580×2460
Cutting chamber C/D(mm)	690×520	840×700	920×880	1080×1100	1300×1400
E(mm)	850	850	850	850	850
Cylinder Stroke(mm)	750	900	900	1100	1300
Rotor Diameter(mm)	φ400	φ400	φ400	φ400	φ400
Main Shaft Speed (r/min)	83	83	83	83	83
Screen Mesh(mm)	φ40	φ40	φ40	φ40	φ40
Rotor-knives(PCS)	34	46	58	70	88
Stator-knives(PCS)	4	4	4	6	6
Main Motor Power(KW)	30	37	45	55	75
Hydraulic Motor Power(KW)	3.75	3.75	3.75	5.5	5.5
Weight(KG)	4000	4800	5300	6000	7100
