2.2/2.4/2.8/3.2/3.5/4.0 Inch Spi Serial TFT LCD Touch Screen Module Driver IC Ili9341 Ili9488 480*320 320*240 LCD Module

Product Description

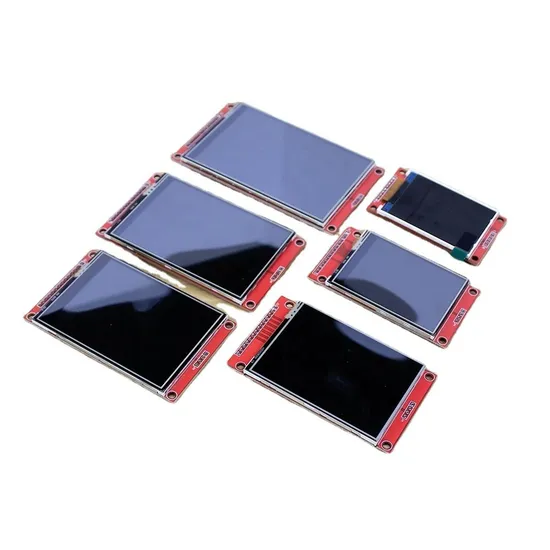

2.2/2.4/2.8/3.2/3.5/4.0 inch SPI Serial TFT LCD Touch Screen Module Driver IC ILI9341 ILI9488 480*320 320*240 LCD module Product Specification:
2.8-inch color screen,support 65K color display,display rich colors 320X240 resolution, optional touch function Using the SPI serial bus, it only takes a few IOs to illuminate the display Easy to expand the experiment with SD card slot Provide a rich sample program Military-grade process standards, long-term stable work Provide underlying driver technical support
General Specifications:

Display Color	RGB 65K color
Screen Size	2.8(inch)
Type	TFT
Driver IC	ILI9341
Resolution	320*240 (Pixel)
Module Interface	4-wire SPI interface
Active Area (AA area)	43.2x57.6(mm)
Module PCB Size	50.0x86.0(mm)
Operating Temperature	-20ºC~60ºC
Storage Temperature	-30ºC~70ºC
VCC power voltage	3.3V~5V
Logic IO port voltage	3.3V(TTL)
Power Consumption	TBD
Rough Weight(Package containing)	No touch: 34(g) / With touch: 43(g)
