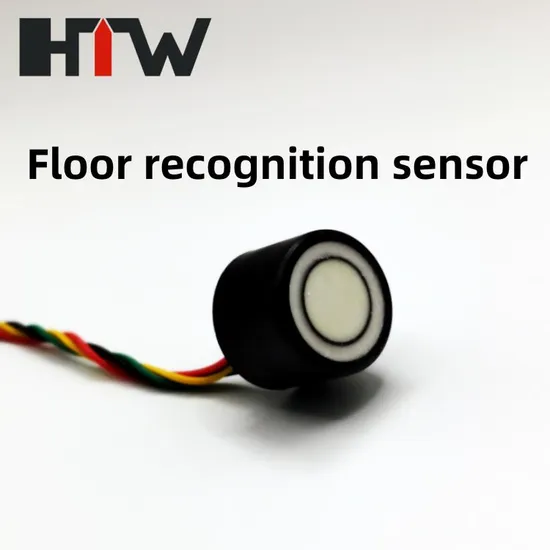

Floor Material Detection Sensor Digital Output with MCU Embedded Ultrasonic Sensor Original Manufacturer Io COM
Basic Info.
Model NO.
HT-300-UTD-MIR
Production Process
Ceramics
Sensitivity
High
Probe Type
Dual Probe
Measuring Medium
Air
Detection mode
Echo Reflection
IP Rating
IP67
Certification
RoHS
Customized
Customized
Transport Package
1300PCS Per Package
Trademark
HTW
Origin
China
HS Code
9031809090
Production Capacity
300, 0000/Month
Packaging & Delivery
Package Size
18.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description
Appearance can be imitated, but quality can NEVER be imitated
| Parameter | Unit | Value |
| Installation height | KHz | 30±1mm |
| Driving frequency | KHz | 300±10kHz |
| Power-on delay | s | ≤30ms |
| The 2nd echo | V | ≥1.3V(1600) |
| Operating Voltage | VDC | 4.9~5.1 |
| Directivity | Deg | ≤12° |
| Working current | mA | ≤10mA |
| Interface Type(Default) | / | High and low level signal(3.3V) High level: ≥2.4V Low Level: ≤0.4V Max output current: 8mA Test frequency: ≤100Hz |
| Interface Type(Need to send command to switch to) | / | Communication mode: COM Data bit: 8 Bps: 115200 Check bit: None Stop bit: 1 |
| Connection | / | Connector: A1251H-4P/CJT with pin interval of 1.25mm |
| Precision | mm | ≤2mm |
| Shell material | -- | PC |
| Shell Color | -- | Black |
| Working temp. | ºC | 0~40ºC |
| The comparison of other models of floor material recognition sensor/transducer: | |||||
| Product | Output | Type | PCBA embedded | Algorism Pre-installed | Remark |
| HT-300PLT1612 | Analog signal | Transducer | NO | NO | Cheapest, R&D in algorism needed |
| HT-300PLT-A | Analog signal | Sensor | YES | NO | Cheaper, Signal amplified and filtered R&D in algorism needed |
| HT-300PLT-M | Digital signal (COM) | Sensor | YES | YES | Time-saving in algorism, directly set up the value for different floor materials to be able to differentiate |
| HT-300PLT-MIR | Digital signal (COM+I/O) | Sensor | YES | YES | Time-saving in algorism, the default mode is I/O, directly outputting the result for either hard or soft floor type, it can be switched to COM mode to set up threshold value for more floor material detection |
Contact us if you have questions or concerns, we are one of the top manufacturers focusing on piezo materials and ultrasonic sensors in China
