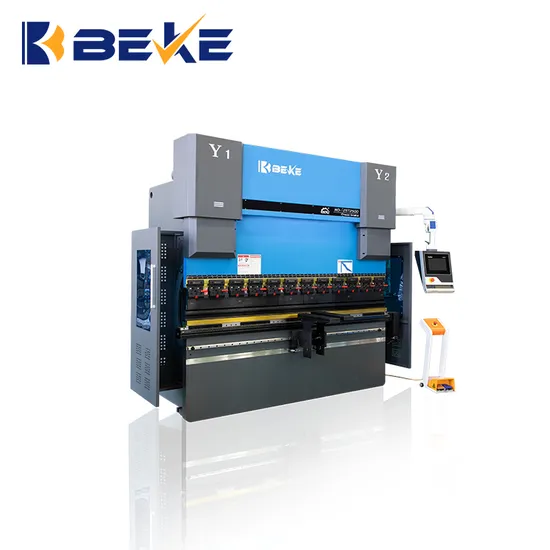

Da53t Hydraulic CNC Sheet Metal Pipe Bending Machine Press Brake
Basic Info.
Model NO.
DA53T 125T2500
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model
We67K 125t2500 4+1
Axes
Y1, Y2, X, R+Crowning
Servo Drive
Inovance
Control System
Da53t
Main Motor
Siemens
Siemens
3200X1820X2530mm
Transport Package
Cover with Plastic Film
Specification
3850x1850x2600mm
Trademark
BEKE
Origin
China
Product Description
Detailed PhotosProduct Description Company Profile Packaging & Shipping customer Parametric
| ITEM | VALUE |
| Model | WE67K 125T2500 4+1Axis |
| Pressure | 125ton |
| Max bending length | 2500mm |
| Max bending thickness for 3m sheet | 6mm |
| Column distance | 1960mm |
| Slide stroke | 200mm |
| Max opening height | 480mm |
| Throat depth | 400mm |
| Main motor power | 11kw |
| Machine size | 3200X1820X2530mm(LxWxH) |
| Weight | 7000kg |
| Axes | Y1, Y2, X, R |
| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| DELEM DA53T CNC System Features: "Hot-key" touch navigation 10.1" high resolution colour TFT Up to 4 axes (M1Y2 + 2 aux axes) Crowning control Tool / material / product library Servo and frequency inverter control Advanced Y-axis control algorithms for closed-loop as well as open-loop valves TandemLink (option) USB memory stick interfacing Profile-T offline software | |
