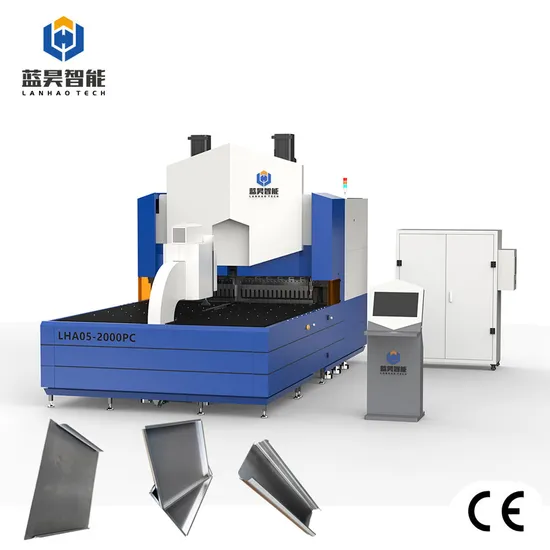

Good Price Good Quality Factory Supply Lanhao Flexible Panel Bender

Good Price Good Quality Factory Supply Lanhao Flexible Panel Bender

US$100,000.00-105,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LHA-2000PC
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Panel Bender
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Panel Bender
Specification
2000PC
Trademark
LANHAO
Origin
China

Product Description

Product Parameters
LHA-2000PC-03 Technical parameters
Feeding structure Pressing arm
Work table structure brush
System minimum accuracy 0.001mm
Max bending speed 0.2 second/time
Max feeding speed 90m/min
Max.bending width 2000mm
Max.Bending size L 2000mm X W 1250mm
Max. Bending height
(The maximum bending height after customization can reach 300mm)
170mm
300mm(customizable)
Min. Bending height 3mm
Min.arc radius 0.5mm
Rated power 380V
Motor power 79KW
Average power About 2.8 KW
Noise About 50 dB
Machine size L510cm X W265cm X H330cm
Total weight About 16 tons
User operating environment Win7 or above system
Max. Bending width UTS 515N/mm2 304 stainless steel 1.5mm
UTS 410N/mm2 cold panel 2.0mm
UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel width 0.35mm
Four side forming min. Inner size About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size About 140mm
Bending angle 0-180 degree
Axis 15

Bending Cases
Certifications

Company Profile
