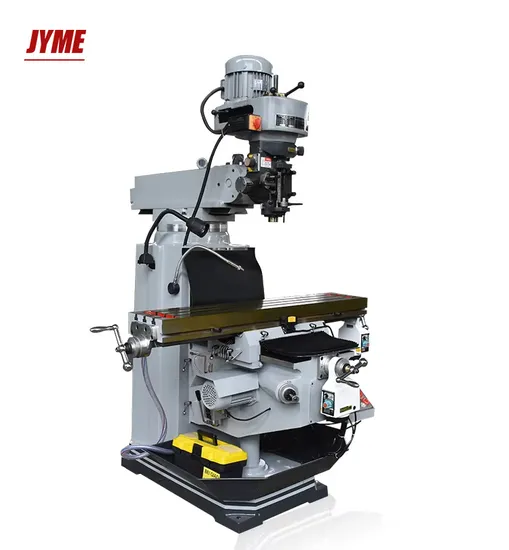

X6325 X6325D New Style Good Quality High Precision Metal Conventional Milling Machine
| US$3,000.00-3,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325
Power Source
Manual
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
254X1270 / 254X1370mm
Longitudinal Travel
780 / 950mm
Transverse Travel
420 / 400mm
Vertical Travel
420mm
T Slot No. and Size
3X16mm
RAM Travel
470mm
Spindle Taper
R8/ISO30/ISO40
Spindle Travel
127mm
Spindle Motor
2.2kw
Transport Package
Wood CTN
Specification
1280x1100x2080mm
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Parameters:
| Specifications | unit | X6325 |
| Table size | mm | 254x1270 / 254x1370 |
| Longitudinal travel | mm | 780 / 950 |
| Transverse travel | mm | 420 / 400 |
| Vertical travel | mm | 420 |
| T slot no. and size | mm | 3x16 |
| Ram travel | mm | 470 |
| Distance from spindle nose to table surface | mm | 0-405 |
| Spindle taper | | standard: R8 |
| | Optionl:ISO30/ISO40 | |
| Spindle travel | mm | 127 |
| Spindle speed | rpm | standard: (50HZ) 65-4500 16steps |
| optional: (variable)65-4500 | ||
| Auto quill feed | mm/rev | 0.04/0.08/0.15 |
| Spindle motor | kw | 2.2 |
| Head swivel | | 90° |
| Head tilting | | 45° |
