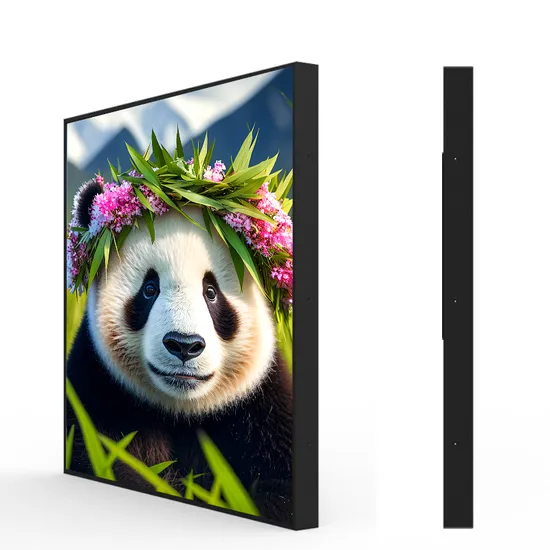

Factory 19.2′′, 22′′, 29.5′′, 35.7′′ 51.7 Inch HDMI Android Square LCD Monitor Display for Art Exhibition, Gallery, Muesum, Advertising Machine

Product Description

Product Description

Factory 19.2'', 22'', 29.5'', 35.7,51.7 Inch HDMI Android Square LCD Monitor Display for Art Exhibition, Gallery, Muesum, Advertising Machine

1. Resolution: 2k/4k.
2. Reflectivity: within 1%,using AG glass.
3. PCB configuration optional: support high-speed IC/Android 13 logic/ordinary monitor HDMI or DP input
4. Backlight optional: support high-contrast QLED backlight (1000000:1) and ordinary LED (3000:1).
5. Touch function optional: support manual touch and stylus.
6. Human body sensing function optional: support automatically adjusts brightness when a person approaches within 6 meters.
7. Noise reduction function optional: support voice recognition and undistorted recording within 6m.

Display	Size:	35.7inch
	Panel Type	a-Si TFT-LCD
	View Area	598.5mm(H)*680.4mm (V)
	Display Ratio	>3:1
	Resolution	1866X2160
	Display Color	16.7M
	Pixel Pitch	0.315×0.315 mm
	Brightness	5000CD
	Contrast ratio	3000:1
	Viewing angle	178°
	Response time	8ms
	Scanning frequency	60Hz
	OSD Language	Chinese/English
Interface	Video interface	N/A
	Audio interface	N/A
	Other interfaces	N/A
System	CPU	Intel® Alder Lake N95
	Memory	LPDDR5 8G support 4800 MHz
	Hard disk	16G EMMC
	WIFI	2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK
	Bluetooth	N/A
	Internet port	N/A
	Interface support	TF Card×1/USB×1 Type-cX1
	Operating system	Android 13

Detailed PhotosKey Features1. Support real-time management and release on mobile phones, iPads, and PCs.2. Support remote upgrade of advertising machine software version and OTA upgrade3. Support advertising machines in the same group to play synchronously and consistently , with a synchronization interval of lessthan 500ms4. Support remote setting of advertising machine properties on mobile phones, control of advertising machine volume, rotation angle,time zone, power on/off, etc.5. Support remote monitoring of advertising machine network status, system status , and hardware status , monitoring of advertisingmachine playback content.6. Support multiple forms of scrolling subtitles and bullet comments, The font, size, and content of subtitles and bullet comments canbe edited.7. Scheduling supports multiple priorities, including pad/normal/insert/emergency message priority8. Scheduling supports multiple cyclic modes, daily/weekly/monthly.9. It can support various media such as video/images/running lights/subtitles/RSS/components/ppt/pdf.10. It supports one click calling of self built templates on mobile phones and can be modified at any time.

Ultra-wide,Square Monitor List
Model	Size (inch)	Brightness	Power Consumption	Resolution	AA Size (mm)(H*V)	Outline Size (mm)(H*V*B)	Contrast
FT012-192-190190-A0	19.2	450	46W	1900*1900	345*345mm	372.8*372.8*22mm	3000:1
FT012-216-899669-A0	21.6	500	46W	899*669	441*328mm	465*352mm*22mm	3000:1
FT012-220-144144-A0	22	550	46W	1440*1440	387.72*387.72mm	411.3*411.3*22mm	1200:1
FT012-295-216216-A0	29.5	800	45W	2160*2160	529.42*529.42mm	553*553*22mm	1000000:1
FT012-333-192192-A0	33.3	500	45W	1920*1920	598.5*598.5mm	628.6*628.6mm*35mm	3000:1
FT012-357-186216-A0	35.7	550	70W	1866*2160	598.5*680.4mm	621.4*713.8*35mm	3000:1
FT012-517-216216-A0	51.7	800	95W	2160*2160	928.26mmx928.26mm	949*949mm*21.5mm	1000000:1
FT012-290-384108-A0	29	400	38W	3840*1080	698.4*196.45mm	722*220*22mm	3000:1
FT012-320-192108-A0	32	400	80W	1920*1080	696.8*391.8mm	720.8*415.8*62.8mm	1200:1
FT012-320-384216-A0	32	400	70W	3840*2160	697.4*392.4mm	745.8x440.8x57.5 mm	3000:1
FT012-338-256720-A0	33.8	450	65W	2560*720	825.6*232.2mm	856.2*262.8mm	1200:1
FT012-430-384216-A0	43	400	68W	3840*2160	941.184*529.416mm	964.8*553*22mm	4000:1
FT012-495-384106-A0	49.5	400	85W	3840*1080	1195.78*336.31mm	1226.6*367.1*54.3mm	1500:1
FT012-231-192158-A0	23.1	500	20W	1920*158	585.56*48.18mm	599.6*66*24mm	1500:1
FT012-350-288158-A0	35	400	38W	2880*158	878.4*48.19mm	895.6*65.4*20mm	1500:1
FT012-460-384120-A0	46.6	450	38W	3840*120	1183.68*36.9mm	1200.9*54.2*20mm	1500:1

Application:1. Transportation: Digital signage in buses, trains, and cars for route information and advertising.2. Retail: Shelf displays for product advertising and promotions.3. Gaming and Entertainment: Slot machines, arcade games, and digital scoreboards.4. Industrial and Manufacturing: Control room monitoring and quality control displays.5. Hospitality and Tourism: Hotel information displays and interactive wayfinding.6. Healthcare: Medical imaging and patient monitoring.7. Financial and Banking: ATM displays and digital signage in banks.8. Corporate and Office Spaces: Conference room displays and digital menu boards.9. Education: Digital signage in schools and interactive learning displays.
Company ProfileHead Sun Co focuses on the capacitive/resistive touch screen and USART-HMI display modules. We're a manufacturer, with modern facilities, holding comprehensive ISO 9001 quality certification, can offer customized service.Our core products, like HMI, LCD screen assembly, have been widely used in financial terminals, Consumer electronics, Self-service terminals and other industries.3M screen in electronic entertainment industry, transportation and aviation fields.7 wire resistive screen in Agriculture and large-scale industry.Head Sun is equipped with 8 automated production lines and dust-free workshops. Besides, our R&D team is consist of 15 engineers experienced in this fields. Our daily capacity is 20-30 thousand pcs. All products are subjected to tests in accordance with the highest quality criteria to guarantee our customers top-quality and reliability.
Certifications & Exhititions
Packaging & Shipping
FAQQ1. What services can we offer? We are a professional manufacturer of projected capacitive touch panel and TFT LCD module, can help you do customized products.Q2. What is the delivery time? For samples: 15-20 working days upon receipt of the sample fee. For cargo: 25-30 working days upon receipt of the payment.Q3. What is the payment term? 50% deposit to issue production, 50% before shipping out.Q4. What kind of transportation do you offer? The goods can be shipped by sea, by air or by express such as DHL, UPS, TNT, Fedex, EMS.
