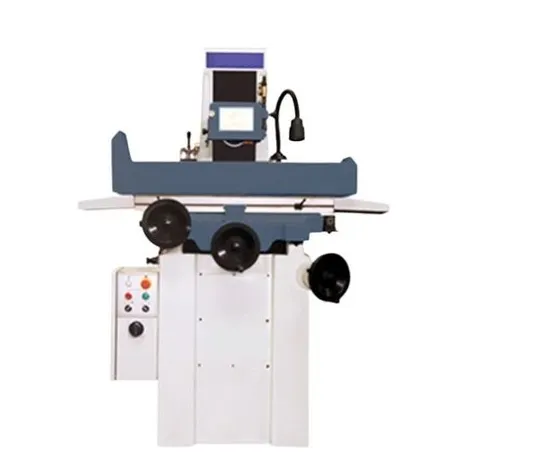

M Series Manual Surfacegrinder M618A/M818A

Product Description

Specificities:
The machine adopts saddle moving structure, thetransverse guide rail is covered with TF WearableMaterial, the machine adopts the high precisionleadscrew, the high strength cast iron foundation, theoverall quality of the machine is stable, the operationis stable.

Model No.		M618A	M818A
Item No.
General capacity
Max. width to be ground		165 mm	220 mm
Max. length to be ground		470 mm	470 mm
Max. height to be ground		350 mm	350 mm
Table size		150x460 mm	210x450 mm
Permanent magnetic chuck size		150x400 mm	200x400 mm
Max.longitudinal travel		500 mm	500 mm
Max.cross travel		185 mm	240 mm
Max.distance from table surface to spindle center		450 mm	450 mm
Feed of vertical hand-wheel	Per. Rev	1mm	1mm
	Per. Div	0.005 mm	0.005 mm
Grinding wheel size (OD*W*ID)		200x13x31.75 mm	200x13x31.75 mm
Spindle speed		3450(60HZ) 2850(50HZ)	3450(60HZ) 2850(50HZ)
Power of spindle head		4.5 KW	4.5 KW
Max.load capacity(include permanent magnetic chuck)		97 KG	128 KG
Machine weight		790 KG	920 KG
Machine appearance size(L*V*H)		1330X1090X1675 mm	1330x1150x1675 mm
Package dimension (L*V*H)		1340x1120x1930 mm	1400x1120x1985 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
