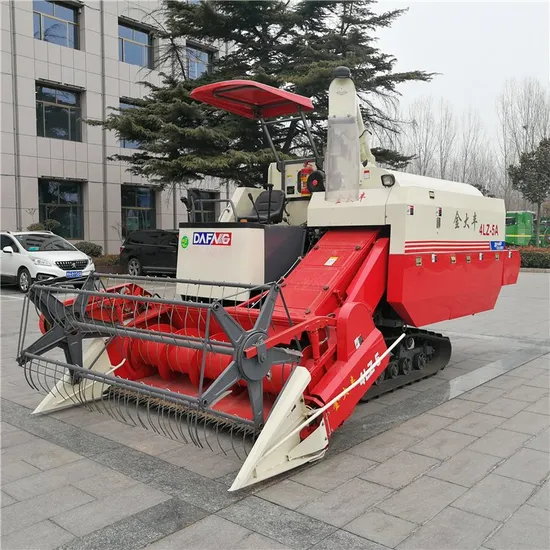

Harvesting Machine Beans Agriculture Machinery Farm Harvest Corn Maize Rice Combine Harvester

Product Description

Combine Harvester Main Technical Parameters

Model	lk-1
Type	Rice&Wheat combine harvester
Cutting table width	2200mm
Feeding volum	5kg/s
Working efficiency	0.65-0.85hec/h
Dimension (L*W*H)	5450x2520x2870mm
Weight	3400kg
Min ground chearance	330mm
Track grounding pressure	≤24K pa
Operating speed	0.9-6.5km/h
Fuel Consumption	≤35kg/hec

Engine	Manfacturer	Famous manufacturer(Changchai)
	Model	4G33TC
	Type	Vertical,Four-stroke,Water-cold,Direct injection
	Number of cylinder	4
	Rated power	102HP
	Standard rotary speed	2600r/min

Cutter type	Euro II
Cutting table cross auger type	Spiral propeller

Reel	Type	Eccentric sping tooth
	Dimeter	900mm
	Reel bar	Longitudinal axial flow

Threshing	Number	1
	Type	Longidinal axial flow
	Size(OD*Length?)	620*300mm

Concave screen type

Grid format

Fan	Type	Centifugal type
	Diameter	400mm
	Quantity	1

Rubber track	Pitch x Shction Number x Width	90mmx51mmx400mm (450/500/550mm is optional)
	Gauge	1150mm

Working Gears	I II
Cab type	Closed Type
Gearbox type	Mechanical +HST
Serivce brake	Wet friction plate type
Drive axle type	Hydro-static Drive
Stem shredder type	Rotary blade type

Unloading grain	Small Grain Tank	Manual &sacked
	Big Grain Tank	Mufti-directional unloading grain

The volum of grain Tank	1.4M3
Re-thresher type	Blade type

Combine Harvester Main Features
1. 2.2 meters cutting width, Big Hydraulic JDF80 gear box with 38cc HST, high efficiency.
2. 102HP Brand Turbo-charged Diesel Engine with stronger power and low fuel consumption.
3. 500*90*51mm extra wided and extended rubber track. Lower ground pressure, work in the wet field more stably
4. 340mm Higher ground clearance and increase the height between chassis and the top of track, not easy to accumulate mud. better for passing in paddy field.
5. The longitudinal axial flow threshing cylinders is more efficient and adjustable front & rear large-area sieving plates ensure the grain more clean, less breakage and less loss.
6. Widen conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
7. Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
8. Down-forward straw-discharging outlet for straws with shredding mechanism to get straw pieces back to fields. Convenient for gathering by baler machine.
9. New design of tension frame, Reinforce imported belt structure, avoiding belt being broken and track slip. And New design of all shields for easy open and maintenance.
10. Sided small grain tank of 0.3CBM and Big grain tank of 1.4CBM with 270° discharger auger & Air conditioned cab and sunshade at Option.

Rice & Wheat Combine Harvesters
Model:LK-1
Type: 1.4CBM (700-800Kg) big tank with 270° rotating discharger auger
Type of Payment: T/T
Qty' of Loading: 3 Sets/40HQ
Time of delivery:25days Optional Parts
Additonal Corn Grain Equipment + US$710.00
Additonal 3 Rows Picker Header + US$5200.00
Additional Recommended Spare Parts + US$780.00-938.00 Picture display
