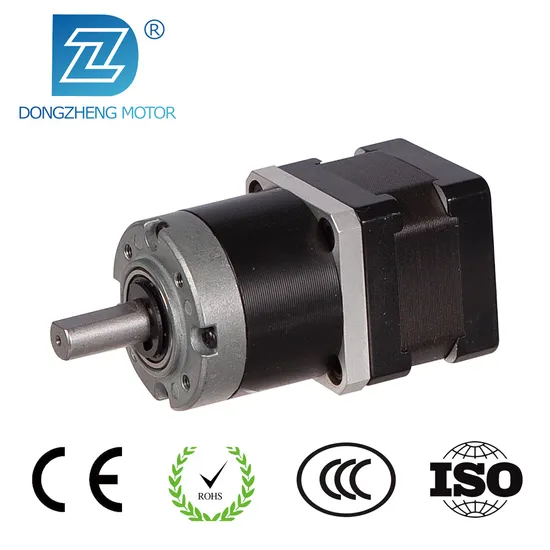

36JXES60K/35STH Ring gear can be selected within the two materials: Powder metal ( Type:36JXF60K ) , Metal( Type:36JXE60K )
Planetary Gearbox

Ring material	E : Metal/ F :Powder metal
Bearing at out put	Ball bearings
Max. Radial load(10 mm from flange)	≤50 N
Max. shaft axial load	≤30 N
Radial play of shaft (near to flange)	≤0.07 mm
Axial play of shaft	≤0.3 m m
Backlash at no- load	≤1.5°

35STH Hybrid Stepping Motor Specifications

Model No	Rated Voltage	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Weight	L1 Length L1	Max Gear Ratio
Single Shaft	V	A	Ω	mH	g.cm		g-m²	G	mm
35STH28-0504A	10	05	20	14	1000	4	11	140	28	≤1:264
35STH36-1004A	2.7	10	2.7	4.3	1400	4	14	180	36	≤1:189

A -Single Shaft, B- Double shaft
36JXES60K Planetary Gear box Specifications

Reduction ratio	3.71	5.18	14	19	27	51	71	100	139
Number of gear trains	1		2			3
(L2) Length( L2) mm	27.0		34.1			41.0
kg.c m Max rate d torque	18		30			48
kg.c m Short time permissible torque	54		90			144
Efficiency %	90%		81%			73%
Weight g	195		210			290

Dimensions (mm)	Rated Voltage (VDC)	Current / Phase (A)	Reduction Ratio	Holding Torgue (g.cm)
22	3.9-4.32	0.6-0.8	1:3.71-1:369	180-300
28	3.4-4.4	0.95	1:3.71-1:369	750-900
36	2.7-12	0.31-1.33	1:3.71-1:139	1000-2200
42	2.8-12	0.4-1.68	1:3.5-1:294	1600-3600
52	2.8-12	0.4-1.68	1:4.5-1:162	2600-4400
56	1.9-6.6	1.0-2.8	1::3.6-1:326	390-12600

Features:
Stepping motors come in a wide range of angular resolution.The coarsest motors typically turn 90 degrees per step,while high resolution permant magnet motors are commonly able to handle 1.8 or even 0.72degrees per step.With an appropriate controller,most permanent magnet and hybrid motors car be run in half-steps,and some controllers can handle smaller fractional steps or microsteps.
