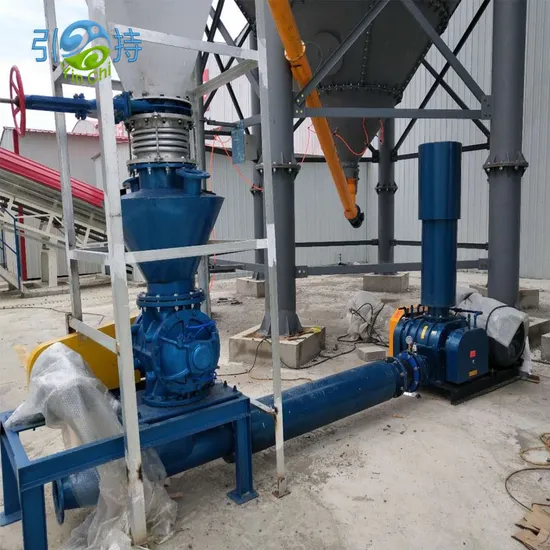

Automated Dilute Phase Pneumatic Conveying System with Advanced Control Technology

Product Description

Positive pressure dilute phase pneumatic conveying Yinchi Environmental Protection divides the positive pressure dilute phase pneumatic conveying system into two types: medium and low pressure pneumatic conveying and high pressure conveying. The operation mode of these two types of positive pressure dilute phase pneumatic conveying systems is basically the same, with the difference being the different gas source pressure, conveying volume, conveying height, and conveying distance of the pneumatic conveying system. Working principle of positive pressure dilute phase pneumatic conveying The positive pressure dilute phase pneumatic conveying system uses a fan installed at the starting point of the conveying system to pass positive pressure air above atmospheric pressure into the feeder device. The material is added from the hopper and enters the feeder for quantitative feeding under the action of gravity. The material and gas are transported through the conveying pipeline to the separator or storage bin at the end point. After material and gas separation, the air is filtered and discharged into the atmosphere. Product Description Positive pressure dilute phase pneumatic conveying parameters

Item	Transfer Mode	Transfer Volume(t/h)	Transfer Pressure(kPa)	Pipe Dia(mm)	Height(m)	Distance(m)
Para	Positive Pressure dilute phase	0.1-100	29.4-196	50-250	5-35	10-300

Characteristics and advantages of positive pressure dense phase pneumatic conveying system This system is a pneumatic conveying system that uses a Roots blower as the air source and a rotating feeder as the feeding device to continuously press materials. The system has the characteristics of low conveying pressure, short conveying distance, and reliable conveying. It is suitable for dispersed conveying from one place to multiple places, playing a role in drying and grading materials; Due to the positive pressure of the system, even if there are gaps at certain connections in the components of the piping system, external air or rainwater will not invade; Materials are easily discharged from the discharge port.
1. The flexible configuration of conveying pipelines makes the production process of the factory more reasonable.
2. The conveying system is completely sealed, with less dust flying, which can meet environmental protection requirements.
3. Few moving parts, convenient maintenance and easy automation.
4. The high efficiency of bulk material transportation reduces packaging and loading and unloading transportation costs.
5. It can avoid moisture, dirt, and other impurities from being transported, ensuring the quality of transportation.
6. Multiple process operations can be achieved simultaneously during the conveying process.
7. Materials concentrated by counting points can be sent to one location or sent from one location to dispersed counting points, and remote operation can be achieved.
8. For materials with unstable chemical substances, inert gas transportation can be used. Product Details
Our Advantages
Real cases of positive pressure dilute phase pneumatic conveying
Support engineering - High quality pneumatic conveying engineering
The advanced level of construction technology not only depends on construction management and innovation, but also pays more attention to the overall and durability of the project. In order to ensure the quality of the project and maintain environmental protection, a unique set of pneumatic conveying experience has been formed through continuous adjustment and research and development to ensure the quality of the project
Including: 6 quality management mechanisms, 4 technical guarantees, and 6 after-sales support measures
By managing on-site construction, conducting on-site surveys, designing and developing products and equipment, we ensure the quality of materials and construction from various sources
On site investigation mechanism
A professional pneumatic conveying engineer will survey the site environment and usage conditions, including altitude, altitude, atmospheric temperature, relative humidity, atmospheric oxygen content, temperature and humidity, air pressure, wind direction, wind speed, rainfall, earthquake intensity, and altitude, without leaving any slight differences
Joint design mechanism among multiple design engineers
Each project received by Yinzhu Environmental Protection is jointly designed and developed by Yinzhu Environmental Protection and pneumatic conveying engineers to ensure the overall stable operation of the system, accurate and error free progress acceptance, and zero rework.
Standardization mechanism for design drawings
A professional and unified mapping system; Standard design requirements; A concise and clear presentation of the design plan, allowing customers to clearly understand the design results.
Pre construction disclosure mechanism
Before the engineering disclosure, the designer, engineering supervisor, and project manager shall review and approve the engineering plan in advance, ensuring that the maximum consideration is given during the disclosure and meeting the comprehensive rationality of the disclosure.
Main equipment research and development mechanism
To ensure the overall stability of the system, all major equipment of the entire system is independently developed and manufactured by Yinhe Environmental Protection, ensuring quality and refusing to shift the blame on quality issues.
Inspection mechanism
From the start of the project to its completion, professional engineering supervisors conduct full monitoring of the acceptance of main materials, auxiliary materials, and construction quality.
Technical Assurance
1. The main components of the equipment shall undergo factory tests and ensure that the design and structure meet the requirements of this technical tender.
2. The chemical composition, mechanical properties, and internal quality of the materials used in the equipment comply with the provisions of the drawings and technical documents.
3. The service life of the main body of the complete system equipment shall not be less than ten years.
4. The maximum sound pressure level at 1 meter around the complete system is ≤ 85 decibels
Certifications
Company Profile Shandong Yinchi Environmental Protection Equipment Co., Ltd. is more than a blower manufacturer, but an experienced and skillful roots blower solution provider. The YCSR series three-lobes roots blowers have served different industries as chemical, electric power, steel, cement, environmental protection, aquatic products etc. around the world. We provide solutions to products, technical support, project design, and overall construction. And has established a good reputation in the field of pneumatic conveying. Your problems of feed back will be updated and solved, and our quality keeps improving. Customer satisfaction is our biggest motivation to move forward. FAQ FAQ 1. How can I get the price?
- We usually quote within 12 hours after we get your inquiry .
2. Can I buy samples? - Yes. Please feel free to contact us.
- Our MOQ: 1 SETS
3. What is your delivery time?
- It depends on the order quantity,as general with 15 days.
4. What is your payment term?
- T/T, CASH.L/C,Western Union, MoneyGram, and Paypal. This is negotiable.
5. What is the shipping method?
- It could be transport by shipping or express.
- It depends on the weight and volume of the specific cargo.
6. How do you make our business long-term and good relationship?
- Best Quality + Fast Delivery time + Competitive price + Professional service
MORE DETAILS KINDLY CONTACT DIRECTLY,WAITING YOU NEWS!
