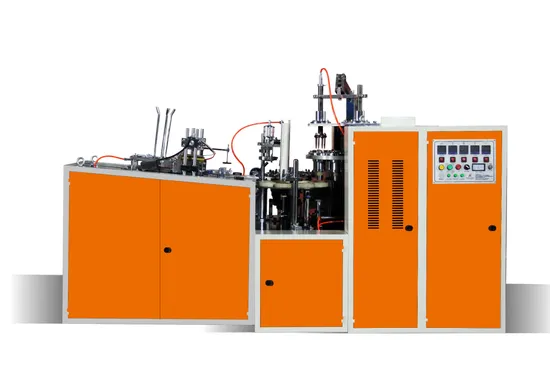

Paper Bowl Forming Machine Made in China

Product Description

ZW-D Paper bowl machine is an automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding, tripping and troubles warning, counting, etc. It is the idea equipment for producing paper bowl, fast noodles bowl and other paper containers. If you need double PE coated paper bowls or paper gram higher 300kg, we recommend you to add the ultrasonic set for the machine, it can produce both single and double PE coated paper cups.
Technical Specification

Type:	ZW-D
Cup size:	16-32oz(,different size mold exchanged)
Suitable paper material:	150-380g/m2 (single or double PE-coated paper)
Capacity:	30-50pcs/min
Power source::	380V 50HZ(please inform us your power in advanced)
working power:	4KW
Weight:	2000KG
Total Power:	7KW
Package size:	2900 x 1500 x 1800 mm
Working Air Source:	Air pressure 0.4Mpa;Air out-put:0.6m3/min
	A:top diameter: Min 80mm---Max 150mm B: bottom diameter Min 60mm---Max 128mm C: total height Min 110mm---Max 205mm D:bottom knurling depth Min 30mm---Max 12mm E: rim diameter Usually Φ2.5---Φ3

FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport. 2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on. 3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit. 4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
