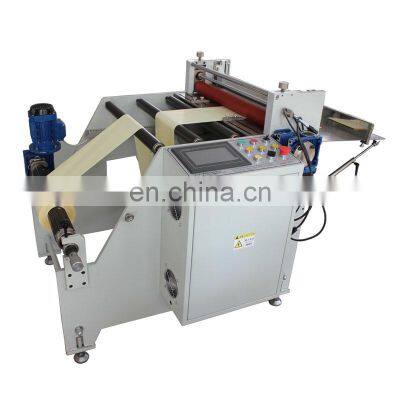

Paper PET PVC film roll to sheet cutting machine

Product Description

Product Description
Paper PET PVC film roll to sheet cutting machine Application:This machine can cut flexible materials,such as plastic,paper,label,film,Mylar,foam,aluminum foil,copper foil, PET, PVC, PCB, FPC,silicon rubber, conductive fabric,double-sided adhesive tape,industrial tape,electronic tape,adhesive tape etc. Feature:This machine employs DELTA servo motor to feed material,high precision,MITSUBISHI PLC with touch screen to set any length,quantity,speed,equipped with 3 inch inflatable shaft for unwinding.Panasonic photocell to track the printed mark for precise cutting.Electrical static eliminator to remove static electricity. Technical Data: ModelDP-600Max Feeding Width ( mm )600Max unwind roll diameter(mm )600Max unwind roll weight(kg)40Unwind shaft diameter3 inchCut 600mm speed ( times/minute )50-80 Main Engineer Power2.5kwPLCMITSUBISHIServo Motor Servo Driver DELTA Precision ( mm )±0.10 Voltage380V 50HZ Mark sensor and conveyor are optional:Other standard machine:360mm,500mm,800mm,1000mm,1400mm.
