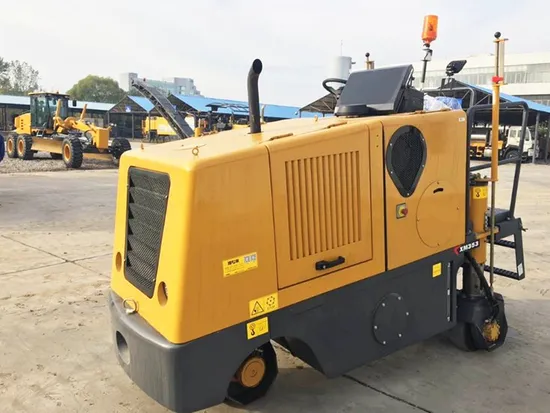

Mini Cold Planer China Road Asphalt Milling 0.35m Xm353

Product Description

XM353 mini cold planer is a municipal maintenance type milling machine, which is mainly used in milling operation for city streets and country roads,
can also be used on small scale of pavement maintenance pavement marking, milling around the manhole cover, pit slot digging, etc.;
Besides, it can be used as auxiliary equipment of large milling machine, to meet the requirement of edge milling planing.
Technical Features:1.Walking system: low speed three-wheel walking, driven by full hydraulic system, which resolves the low gradeability and slipping phenomenon and cost reduction.
2.Milling system: adopt hydraulic mechanical transmission mode,stable and powerful; imports tool bit, ensure the service life of the cutting tools.
3.Milling depth control: Depth indicator is installed on the rear leg, to show the milling depth. This device has optional automatic leveling system.
4.Steering system: full hydraulic steering, convenient and flexible manipulation. 5.Brake: two systems of service braking and parking braking.

Item	Unit	XM353
Milling width	mm	350/500
Maximum milling depth	mm	120
Tool nose distance	mm	12
Number of tools		36/48
Rotor diameter with tool		580
engine model		BF4M2012-10T3R
Rated speed	rpm	2200
Rated power	kw	72
Emission Standards		China III
Fuel tank	L	110
Hydraulic oil tank	L	70
Water tank	L	260
Working speed	m/min	0-40
Walking speed	km/h	0-5.6
Theoretical climbing ability	%	50
Total weight	kg	4800
Minimum milling radius	mm	130
Ground clearance	mm	120
