Customized Factory Price Offline UPS Power Supply UPS 1500 Va Backup UPS
Basic Info.
Model NO.
Customized UPS 1500 Va
Protection
Overvoltage
Application
Communication
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Square Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Brand
Xensure
Display
LED/LCD Optional
Warranty
1 Year
Operating Frequencyrange
50/60 Hz (1±10%)
Capacity
60% of Rated Power
Transport Package
Carton
Specification
4.6 kg
Trademark
OEM
Origin
China
HS Code
8504402000
Product Description
Product Description •Compact size•Excellent microprocessor control guarantees high reliability
•Boost and buck AVR for voltage stabilization
•Auto restart while AC is recovering
•Simulated sine wave
•Off-mode charging
•Cold start function
•Generator compatible

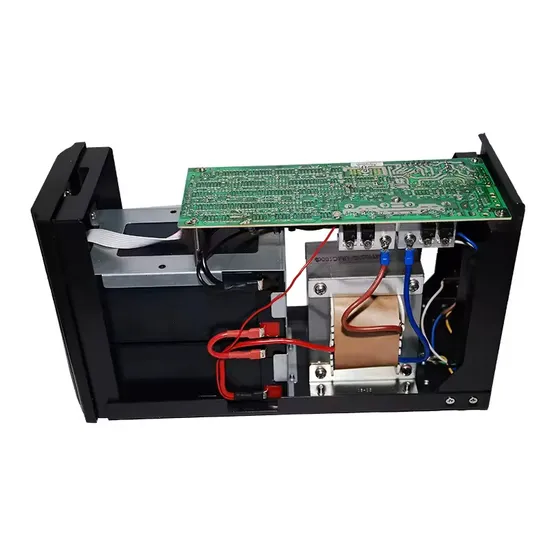

Detailed Photos
Product Parameters
Specifications
| MODEL | BK850 |
| Capacity | 850VA/480W |
| INPUT | |
| Voltage | 110/120 VAC or 220/230/240 VAC |
| Voltage Range | 81-145 VAC or 162-290 VAC |
| Frequency Range | 60/50Hz (Auto sensing) |
| OUTPUT | |
| Voltage | 110/120 VAC or 220/230/240 VAC |
| AC Voltage Regulation(Bat Mode) | ±10% |
| Frequency Range(Bat Mode) | 60Hz or 50Hz ± 1Hz |
| Transfer Time | Typical 2-6ms |
| Waveform(Bat Mode) | Simulated sine wave |
| Peak Efficiency(AC Mode) | >95%@ Full R load |
| BATTERY | |
| Battery Type & Number | 12V 9Ah*1 |
| Floating Charging Voltage | 13.7VDC |
| Charging Ability | 4-6 hours recover to 90%capacity |
| PROTECTION | |
| Full Protection | Short circuit, Overload,Battery discharge and overcharge,Surge protection |
| INDICATIONS | |
| Line Mode | Green lighting |
| Battery Mode | Yellow flashing |
| Fault | Red lighting |
| ALARM | |
| Battery Mode | Sounding every 10 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding every 0.5 seconds |
| Battery Replacement Alarm | Sounding every 2 seconds |
| Fault | Continuously sounding |
| COMMUNICATIONS | |
| USB/RS232/SNMP(options) | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8 Linux Unix and MAC |
| ENVIRONMENT | |
| Humidity | 0-90% Relative Humidity 0-40°C (Non-Condensing) |
| Noise Level | Less than 40dB |
| Dimension | 297*101*142mm |
| Net Weight | 4.9KG |
