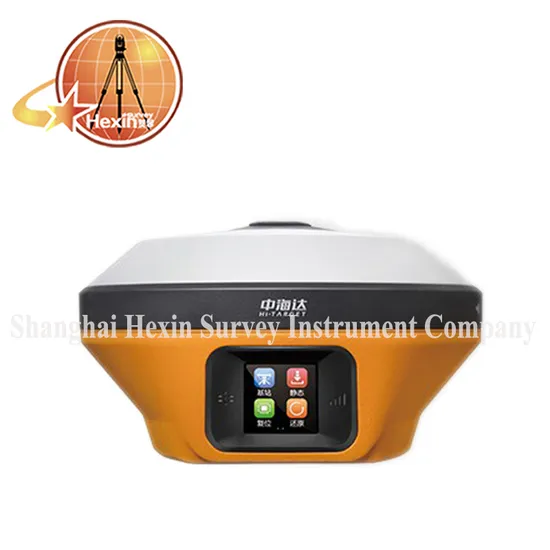

Survey Equipment Hi-Target V98 Machine Control Electronic Bubbles Gnss GPS Rtk

Product Description

PRODUCT DESCRIPTION
Hi-Target V98 GNSS RTK is benefit from next-generation GNSS engine, unlimited communication technology and innovative designs, iRTK5, the high quality scalable GNSS receiver, provides an industry-leading GNSS RTK surveying solution.
MAIN FUNCTIONS

Hi-RTP Global PPP service The correction source has been extended by Hi-RTP global correction service provided by Hi-target. Enabling users to work without a base-station in rural or remote areas anywhere in the world. *Provide centimeter-level global precision. *Harness all constellation signals from BDS, GLONASS, GPS, GALILEO *More than 220 reference stations *L-band statellite radio/internet broadcast

Unlimited Communication 360° Omni-directional Antenna and multi-protocol Radio The top-mounted radio antenna extends the radio working range and enables full omni-directional communication, making the transmitting and receiving distance more than 20% longer. Multi-protocol radio, support Hi-Target, Trimtalk450S, trimmarkIII, Transeot, satel-3AS, SOUTH, CHC Revolutionary Tilt Survey With Built-in IMU Customer benefits from calibration free for tilt survey without centering. Once you reach the surveying points, immediately start the operation. Compared with bubble leveling, boost working efficiency by 20%

PRODUCT SHOW

PRODUCT SPECIFICATION

Satellites Signals Tracked Simultaneously
Channel	336
GPS	L1C/A, L2C, L2E, L5
Glonass	L1C/A, L1P, L2C/A, L3, CDMA
SBAS	L1C/A, L5(QZSS, WAAS, MSAS, GAGAN)
Galileo	E1, E5A, E5B, E5AltBOC, E6
BeiDou	B1, B2, B3
IRNSS	L5
Global correction service	Hi-RTP(optional)
High- precision static Gnss Surveying
Horizontal	2.5mm+0.1ppm RMS
Vertical	3.5mm+0.4ppm RMS
Post Processing Kinematic (PPK/Stop & Go)
Horizontal	2.5mm+0.1ppm RMS
Vertical	2.5mm+0.1ppm RMS
initialization time	Typically 10 min for base and 5 min for rover
initialization reliablity	Typically>99.9%
Code Differential GNSS Positioning
Horizontal	25cm+1ppm RMS
Vertical	50cm+1ppm RMS
SBAS	0.5m(H), 0.85m(V)
Real time Kinematic (PPK/Stop & Go)GNSS Surveying
Single Base
Horizontal	8mm+1ppm RMS
Vertical	15mm+1ppm RMS
Network RTK
Horizontal	8mm+0.5ppm RMS
Vertical	15mm+0.5ppm RMS
initialization time	Typically 2-10 seconds
initialization reliablity	Typically>99.9%
Network Communication
Full band support for cellular mobile network(LTE, WCDMA, EDGE, GPRS, GSM) 2.4GHz WIFI, supports 802.11b/g/n. Network RTK (in CORS) range is 20-50km
Hi-Target internal UHF Radio(Standard)
Frequency	403-473MHz
transmitting power	1~4w Hi-Target Advanced Radio
Supports multiple protocols: Hi-Target, Trimtalk450S, trimmarkIII, Transeot, satel-3AS, etc
working range	3-5km typical, 5-8km optimal
Hi-Target external UHF Radio(Standdard)
Frequency	410-470MHz
transmitting power	5w-25w, compatible with third party radio
Working Range	Typically 8-10km, optimal 15-20km
External Power
6-28V DC external power input (5-pin port) with over-charge protection
Power consumption	4.2W
Dimensions(W*H)	164mm*83.5mm
Weight	≤1.4kg (includes battery)
Data Storage	8G internal storage
Tilt Survey Performance
2cm accuracy in the inclination of 30 degree
HARDWARE
Physical
Dimmensions(W*H)	158mm*98mm(6.22 inch*3.86 inch)
Weight	lighter than 1.3kg (2.65Ib) within internal battery
Operating temperature	-40ºC~+75ºC
Storage temperature	-50ºC~+85ºC
Humidity	100%, considering
Water/ Dustproof	IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft)
Shock & Vibration	MIL-STD-810G, 514.6
Anti-salt spary	MIL-STD-810G, 509.4, 96h
Free fall	MIL-STD-810G, 516.6, designed to survive a 2m natural fall onto concrete
Electrical
6V to 28V DC external power input (5-pin port), with over discharge protection power consumption 4.4W Automatic switching between internal power and external power.
Control Panel
Physical button ×1
Display: 240*240 pixel, 261 ppi
Touchscreen: support glove mode and wet-finger mode
Internal Battery
7.4V, 6800mAh lithium-ion rechargeable and removeable battery RTK rover (UHF/Cellular) for 10 hours, Power indicator embedded, quick charge within 3.5 hours
I/O interface
Bluetooth 4.0/2.1+EDR, 2.4GHz, USB2.0 port with OTG function. Near Field Communication (NFC)
SMA antenna connector	×1
DC Power input (5-pin)	×1
SIM card slot	×1
Data Formats
1Hz positioninng Output, up to 50Hz. CMR, RTCM2.X, RTCM3.0, RTCM3.1, RTCM3.2. Navigation outputs ASCII NMEA-0183, GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA,ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS, Binary: Trimble GSOF, NMEA2000

PACKING & SHIPPING
PAYMENT
COMPANY INFORMETION
Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"
Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.
Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
