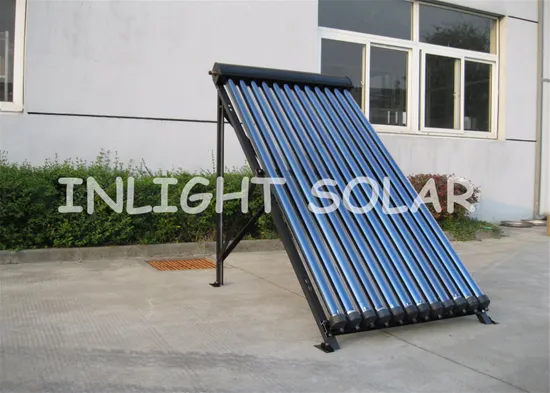

Premium Heat Pipe Solar Collector
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
ILHC-5812H-F
Working Temperature Range
Medium Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Room Heating, Swimming Pool Heating
Pipe Material
Copper
Absorber Coating
3 Layers
Transport Package
Seaworthy Carton
Specification
12, 15, 18, 20, 24, 30
Trademark
Inlight; OEM
Origin
Zhejiang, China
HS Code
8419191000
Production Capacity
5000 Sets/Month
Product Description
Premium Heat Pipe Solar Collector:1. Certificate: ISO9001, CE, CCC, EN12975, OG-100;
2. Professional and experienced manufacturer, good quality with competitive price;
3. Offer samples for evaluation;
4. Accept OEM orders;
Products specifications and details:
| Item No. | Solar Heat-pipe Tube | Collector Size | Packing | Container Loading | ||
| Tube Nos. | Tube Size/ mm | L*W (mm) | Volume/cbm | 20GP | 40HQ | |
| ILHC-5812H-F | 12 | Φ58*1800 | 1950*960 | 0.21 | 138 | 334 |
| ILHC-5815H-F | 15 | Φ58*1800 | 1950*1185 | 0.24 | 122 | 295 |
| ILHC-5818H-F | 18 | Φ58*1800 | 1950*1410 | 0.30 | 98 | 237 |
| ILHC-5820H-F | 20 | Φ58*1800 | 1950*1560 | 0.32 | 92 | 221 |
| ILHC-5824H-F | 24 | Φ58*1800 | 1950*1860 | 0.34 | 84 | 204 |
| ILHC-5830H-F | 30 | Φ58*1800 | 1950*2130 | 0.45 | 64 | 155 |
| 1. Direct-flow Header: High quality red copper, inlet & outlet Φ22mm | ||||||
| 2. Manifold Shell: High-quality black/ gray aluminum alloy 2mm | ||||||
| 3. Insulation: High-density compression-moulded rockwool 50mm | ||||||
| 4. Heat-pipe Tube: Three-target vacuum tube, Φ14 or 24mm condensor copper heat pipe, Aluminium fin | ||||||
| 5. Mounting Frame: Black/ gray aluminum alloy 1.8mm, suitable for roof or exterior wall installation | ||||||
| 6. Accessories: Thermal paste,copper connectors | ||||||
| 7. Working Pressure: 6.0 Bar | ||||||
| 8. Collector Tilt Angle: 20°~90°(Vertical/ horizontal shift: -5°/-5°) | ||||||
| 9. Hail Resistance: < Φ30 mm | ||||||
| 10. Anti-freezing: > - 40°C | ||||||
