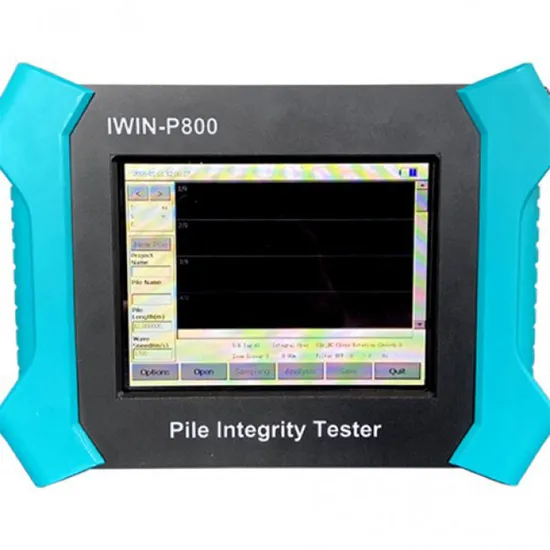

P800 Low Strain Pile Integrity Tester Pile Integrity Testing Device

Product Description

P800 Low Strain Pile Integrity Tester Pile integrity testing device
Pile integrity tester is a test and analysis instrument for pile integrity testing and monitoring of precast pile driving process.
Under impact or vibration load, the pile structure integrity and vertical bearing capacity of single pile are tested and analyzed.The purpose is to determine the bearing capacity of pile and the integrity of pile structure.
Product Parameters
Technical Parameters:

Product Model	IWIN-P800
System Noise Voltage	< 2 mV
Dynamic range	>138dB
Amplifier Band	10Hz~10kHz
A/D Resolution	16 bit A/D
Sampling time interval	2us~32768us
Sampling Length	1024, 2048, 4096
Time indication error	<1%
Channel Number	1
Amplification factor	1~128
Data transmission mode	Wireless Cloud Transport (Options)
Trigger mode	Signal triggering
Sensor Sensitivity	100 mV/g
Sensor frequency band	1-10000Hz
Continuous working hours	> 10 hours
Power Supply	Built-in rechargeable lithium battery (+7.4V)
Display	640*480 Capacitance Screen
Operational mode	Touch
Weight	1.24Kg
Size	220x160x50

Detailed Photos
Packaging & Shipping Packing:1pc in an engineering plastic case.
For sample order, the delivery time is within a week.
For batch order, the delivery time is about 20 days.
Shipping: By express, by air, by sea, by truck or by rail.
FAQ
1.Can I purchase products which are not shown on the website?
Yes. Please send us your detailed requirements and we will try to help with your specific needs.
2.How can I place an order?
You can contact us by email (see contact page).
3.Where do you loading the goods?
Shanghai or Ningbo or Qingdao or Shenzhen port, etc.
4.How to make payment?
You can pay us by Paypal, L/C ,T/T and West Union,etc.
5.What is the type of our transportation?
As your requirement, by express, truck, rail, by sea or by air.
6.Can you offer the customers product sample?
Yes .After receiving your inquiry , we will arrange to send the sample within 3 days.
7.How do you pack the goods ?
According to customer's request.
8.What is your payment terms?
FOB Shenzhen, Guangzhou, Qingdao, Shanghai /Ningbo or other city in China , Or CIF Destination.
9.Can you also offer the service with OEM and ODM ?
Yes. We can offer OEM/ODM service. Please send us your brand information and specification.
10.How long is the warranty of your products ?
Generally, it's one-year-warranty. During the warranty period, we offer you free maintenance.
After the warranty time, lower price for customers buying breakdown parts.
