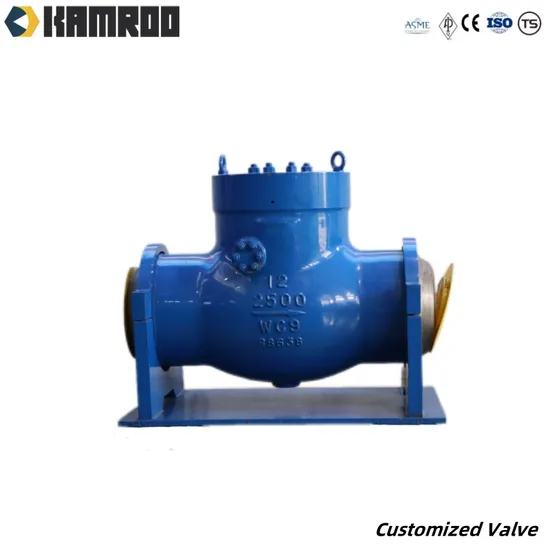

ASTM Hydraulic High Pressure Seal OEM/ODM Full Welded Power Plant Forged Steel Swing Check Valve

Product Description

Water valves are important for controlling the flow of water in a system. One specific type of valve, called a check valve, has a special job: it lets water flow in one direction but stops it from flowing backward.
Check valves play a vital role in plumbing and maintaining water systems. In this article, we will explore the functions of a check valve, explain its importance and provide insight into the different types of check valves available on the market.
Prevents Backflow: The primary function of a check valve is to prevent the backflow of fluids in a piping system. It ensures that the flow of fluid occurs in one direction only, effectively blocking reverse flow. This is especially important in situations where backflow could cause damage, contamination, or interference with the intended flow direction. Protects Equipment and Systems: Check valves help safeguard equipment and systems by preventing potential damage caused by reverse flow. They act as a barrier, preventing fluids from flowing back and causing issues such as pump damage, pipe collapse, water hammer, or contamination of sensitive components. Maintains Pressure: Check valves assist in maintaining optimal pressure levels within a system. By allowing fluid to flow in the desired direction and preventing backflow, they help maintain the desired pressure conditions, ensuring efficient operation of pumps, regulators, and other pressure-sensitive equipment. Enhances System Efficiency: Check valves contribute to the overall efficiency of a system. By preventing reverse flow, they eliminate the need for additional pumps or mechanisms to counteract backflow, thereby reducing energy consumption and operational costs. Minimizes Water Hammer: Water hammer, characterized by sudden pressure surges or shockwaves in a system, can lead to pipe damage and system failure. Check valves help mitigate water hammer by preventing reverse flow and the subsequent pressure spikes that can occur. Allows for System Isolation and Maintenance: Check valves provide a means of isolating sections of a system for maintenance or repairs. By closing off the valve, the flow of fluids can be stopped in a specific direction, allowing for safe and efficient maintenance procedures.
In pipes and similar devices and equipment, check valves are generally used to prevent a reverse flow by allowing materials or fluids to flow in only one direction. Despite their various forms, sizes, and functions, these valves generally operate based on the same principle.
The primary components of a check valve include the Body,Body Seats,Gasket,Cover Plate,Hinge,Nuts,Washer.

Nominal Size	Nominal Size (Inches)	F	H (Approx)
25	1	127±2	115
40	1.1/2	165±2	130
50	2	203±2	145
65	2.1/2	216±2	155
80	3	241±2	175
100	4	292±2	200
125	5	330±2	210
150	6	356±2	240
200	8	495±3	275
