Stone Hammer Crusher Machine for Sale

Product Description

Stone hammer crusher machine
1. Introdution of hammer crusher
Hammer crusher is a crusher for crushing 600-1800 mm material to 25 mm or less.
Hammer crusher is suitable for crushing medium hardness materials such as limestone, slag, coke and coal in cement, chemical, electric power and metallurgical industries.
The hammer crusher is divided into single stage hammer crusher, high efficiency hammer crusher, sand crusher, vertical shaft hammer crusher, reversible hammer crusher, ring hammer crusher and so on.

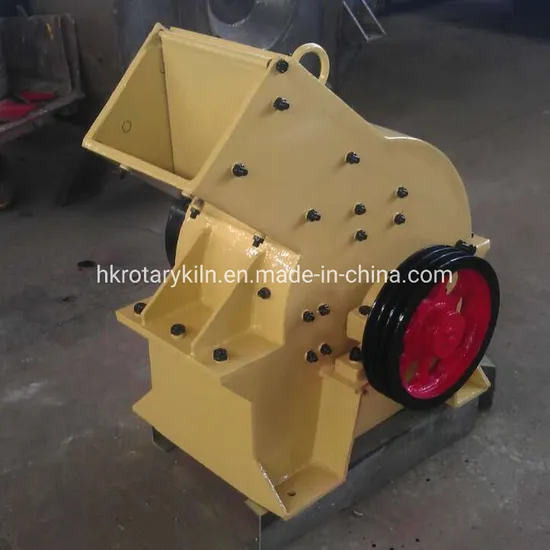

2. Pictures of hammer crusher
3. Working principle of hammer crusher
Hammer crusher mainly depends on impact energy to complete crushing material operation.
When the hammer crusher is working, the motor drives the rotor to rotate at high speed, and the material enters the crusher cavity evenly.
The hammer head of the high speed rotary impact, shearing tearing material causes the material to be broken.
At the same time, the gravity action of the material itself causes the material to rush from the high speed rotating hammer to the baffle inside the frame, the sieve strip,
the material resistance larger than the sieve hole is left on the sieve plate and continues to be hit and ground by the hammer.
Until being broken to the required discharge size , the material is discharged through the sieve plate out of the machine.
4. Technical parameters of hammer crusher

Specifications	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Motor		Total weight (t)	Dimensions (L*W*H)(mm)
				Number of poles	Power (kw)
PC400*300	<=200	<=25	5-10	4	11	0.8	900*670*860
PC600*400	<=250	<=30	10-22	4	22	2.26	1200*1050*1200
PC800*600	<=250	<=35	18-40	4	55	4.8	1310*1180*1310
PC1000*800	<=350	<=35	25-50	4	75	5.9	1600*1390*1575
PC1000*1000	<=350	<=35	30-55	6	132	8	1800*1590*1775
PC1250*1250	<=350	<=35	35-65	6	180	14	2060*1600*1890
PC1400*1400	<=350	<=35	50-100	6	280	32	2365*1870*2220
PC1600*1600	<=350	<=35	100-150	8	480	37.5	3050*2850*2800

5.Characteristics of hammer crusher
(1) Working hammer, casting with new technology, wear-resistant and impact-resistant.
(2) It can adjust the granularity according to the customer request.
(3) The hammer breaks the seal of the airframe and solves the dust pollution and ash leakage in the crushing workshop.
(4) The whole design has the advantages of beautiful design, compact structure, less easily damaged parts, convenient maintenance and so on. It is an upgraded product.
(5) Compact structure, beautiful appearance, good wear resistance and convenient maintenance.
Our Services
From the design, production, installation and debugging, we can provide training and guidance for the buyer's workers, such as send engineers to direct the constrution site.
We also provide one-year maintenance for the machine.
