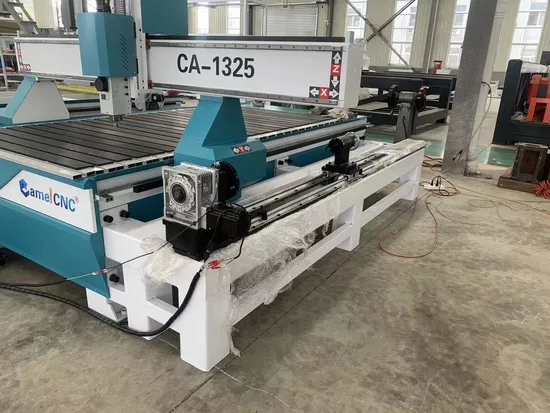

4 Axis Wood CNC Router Woodworking Engraving Machine
| US$4,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CA-1325/1530/2030/2040
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
220V
X,Y,Z Working Area
1300X2500X200mm
Table Size
1700X3040mm
X,Y,Z Traveling Positioning Accuracy
+-0.03/300mm
X,Y,Z Repositioning Positioning Accuracy
+-0.05mm
Lathe Structure
Welded Structure
X, Y Structure
Rack Gear Transmission, Shaft Linear Bearings
Z Structure
Ball Screw, Shaft Linear Bearings
Max. Consume Power
6.5kw
Max. Speed
0-32000mm/Min
Max. Working Speed
0-20000mm/Min
Spindle Power Motor
3.2kw Water-Coolant Spindle
Spindle Speed
0-24000rpm
Drive Mode
Stepper Motor and Driver
Operating System
Nc-Studio
Command
G Code, *Uoo, *Mmg, *Plt
Transport Package
Plywood
Specification
1325/1530/2030/2040
Trademark
CAMEL CNC
Origin
China
Production Capacity
500 Sets/Month
Packaging & Delivery
Package Size
1800.00cm * 1750.00cm * 1400.00cm
Package Gross Weight
1300.000kg
Product Description
Product Description4 Axis Wood Router Woodworking Engraving Machine Wood Cutter Machinery
Product acessories
Product Parameters
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | Table Size | 1700×3040mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Positioning Accuracy | ±0.05mm |
| 5 | Lathe Structure | Welded Structure |
| 6 | X, Y Structure | Rack gear Transmission, Shaft Linear Bearings |
| 7 | Z Structure | Ball Screw, Shaft Linear Bearings |
| 8 | Max. Consume power | 6.5Kw |
| 9 | Max. Speed | 0-32000mm/min |
| 10 | Max. Working Speed | 0-20000mm/min |
| 11 | Spindle Power Motor | 3.2kw water-coolant Spindle |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Mode | Stepper Motor and driver |
| 14 | Working Voltage | AC220V/380V, 50/60Hz |
| 15 | Command | G Code, *uoo, *mmg, *plt |
| 16 | Operating System | NC-STUDIO |
| 17 | Collet | ER20 |
| 18 | X,Y Working Delicacy | <0.01mm |
| 19 | Software | Ucancam, Artcam,Type3 |
| 20 | Running Circumstance | Temperature: 0ºC~45ºC Relative humidity: 30%~75% |
| All parameters above subject to change without prior notice | ||
Application
This machine is widely used in furniture processing industry, home decoration, wood working decoration, doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc. Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
