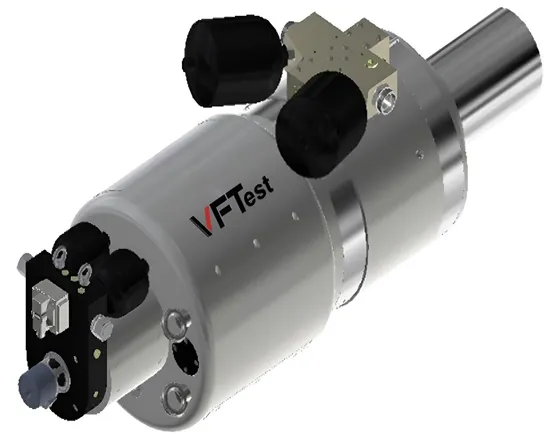

Closed-Loop Control Torque Synchronous Asynchronous Motion Fatigue Actuator Test /Test Parts
| US$6,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VLN
Max Diameter of Workpiece
<500mm
Mass Scope of Workpiece
<900kg
Maxcapacity
>1000KN
Accuracy Grade
0.5
Load Way
Mechanical Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Weight
500-1000Kg
Power Source
AC380V
Oil Cylinder Position
Based on User Needs
Working Pressure
21MPa
Linear Servo Actuator Independent Workin
0.01Hz-100Hz
Oscillating Servo Actuator Independent W
0.01Hz-50Hz
Compound Working Frequency
0.01Hz-10Hz
Effective Torsion Angle
90°
Transport Package
Wooden Box
Specification
800**520*1850mm(Can be Customized)
Trademark
VFTest
Origin
China
HS Code
8412210090
Production Capacity
20pieces/Year
Product Description
Tension and torsion combined static bearing servo actuator produced by our company is a device that outputs tensile force and torsional force in electro-hydraulic servo system, and is a key component of dynamic loading. It is mainly used in the field of dynamic, static and fatigue testing. The Tension and torsion combined static bearing servo actuator is mainly composed of the servo linear cylinder, the servo swing cylinder, the displacement sensor, the Angle sensor and the connection mechanism of the linear cylinder and the swing cylinder, etc., which can realize a variety of closed-loop control. Specification Working pressure: 21MpaMaximum static tensile force: 300kN
Maximum tensile and compressive dynamic force: 240kN
Piston rod diameter: Φ125mm
total tension stroke: 160mm
effective tension stroke: 150mm
Maximum torsional static force: 1000Nm
Maximum torsional dynamic force: 800Nm
Total torsion Angle: 100°
effective torsion Angle: 90°
Linear servo actuator independent working frequency: 0.01Hz-100Hz
Oscillating servo actuator independent working frequency: 0.01Hz-50Hz
Compound working frequency: 0.01Hz-10Hz
